Acid Plant Database April 3, 2008

Owner	Tessenderlo Chemie Ham
Background
Location	Bergstraat 32 BE-3945 Ham Belgium
Website	www.tessenderlo.com www.tessenderlochemie.be
Plant
Coordinates	51° 5' 14" N, 5° 8' 50" E
Type of Plant	Sulphur Burner
Gas Source	Elemental Sulphur
Plant Capacity	1000 MTPD
SA/DA	3/1 DA, 99.7% conversion
Status	Operating
Year Built	1990
Technology	MECS
Contractor	Simon Carves
Remarks	- 15 MW Turbogenerator - Stainless steel converter - 2x100% Blowers with electric motors - HRS System

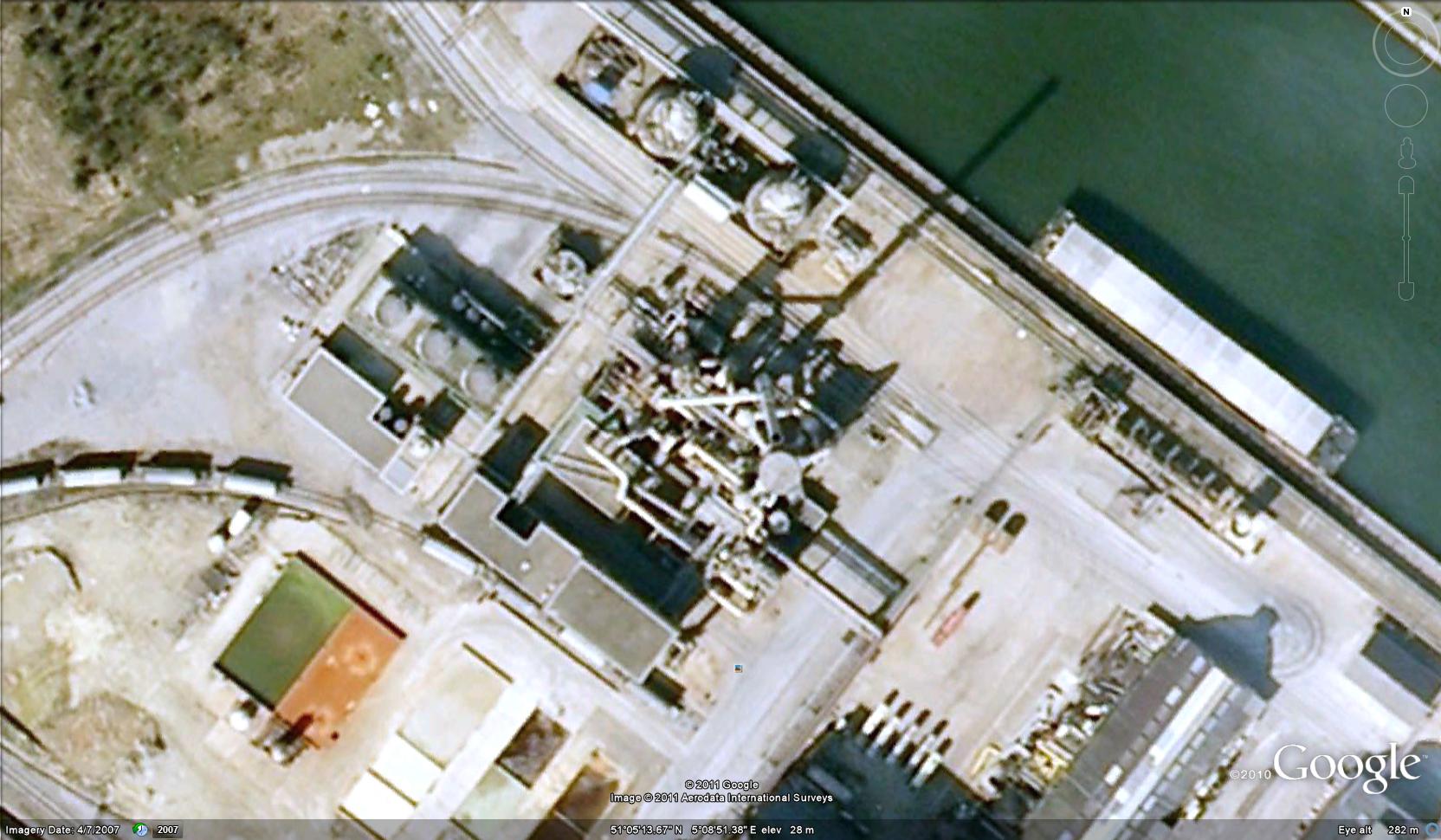

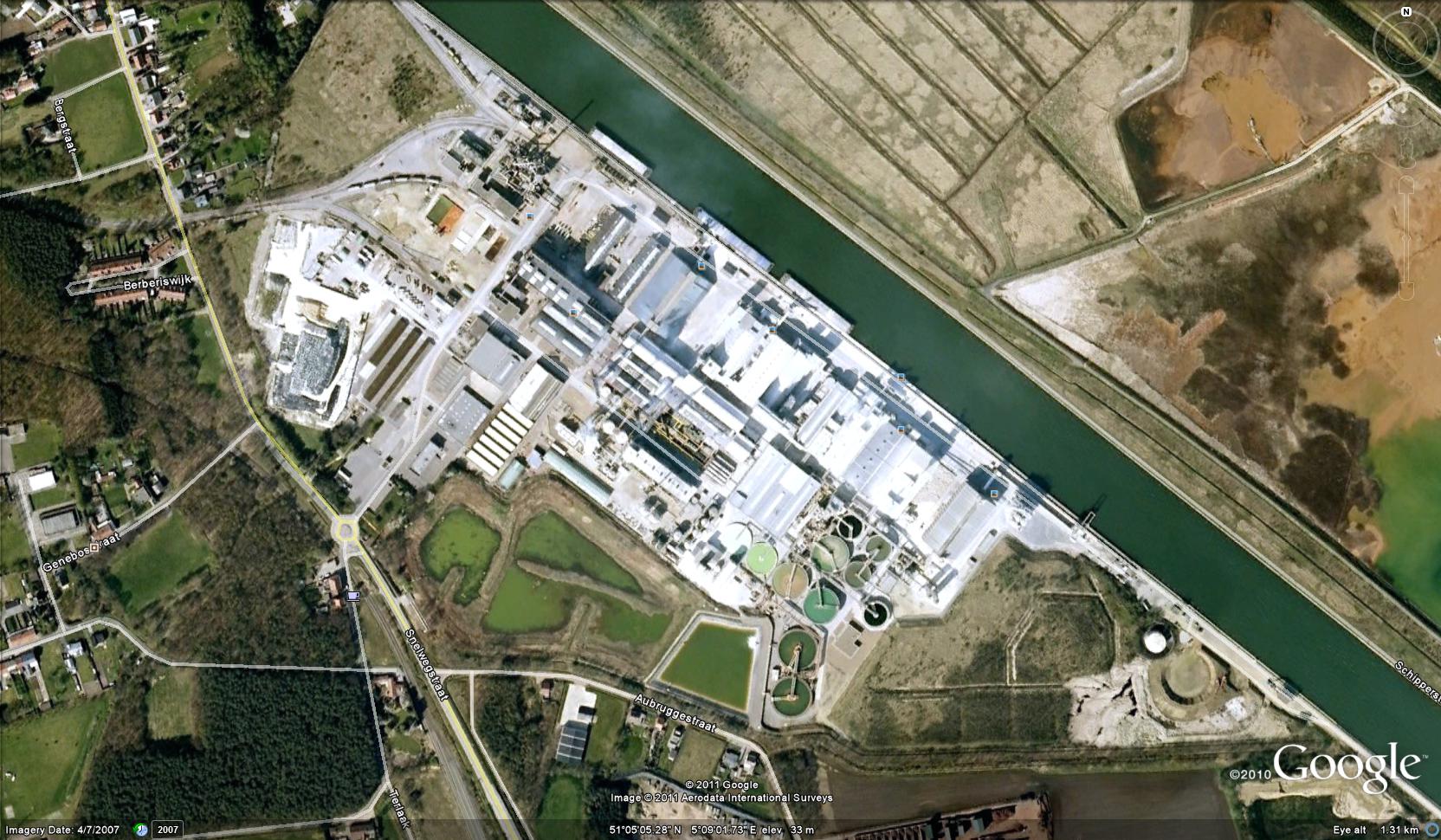

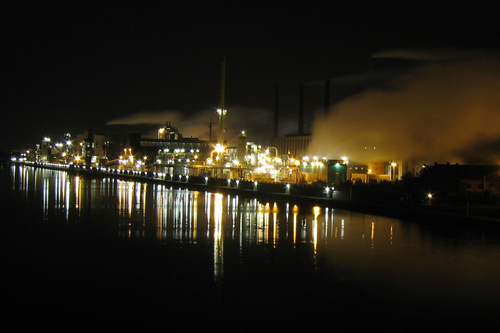

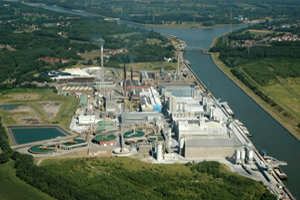

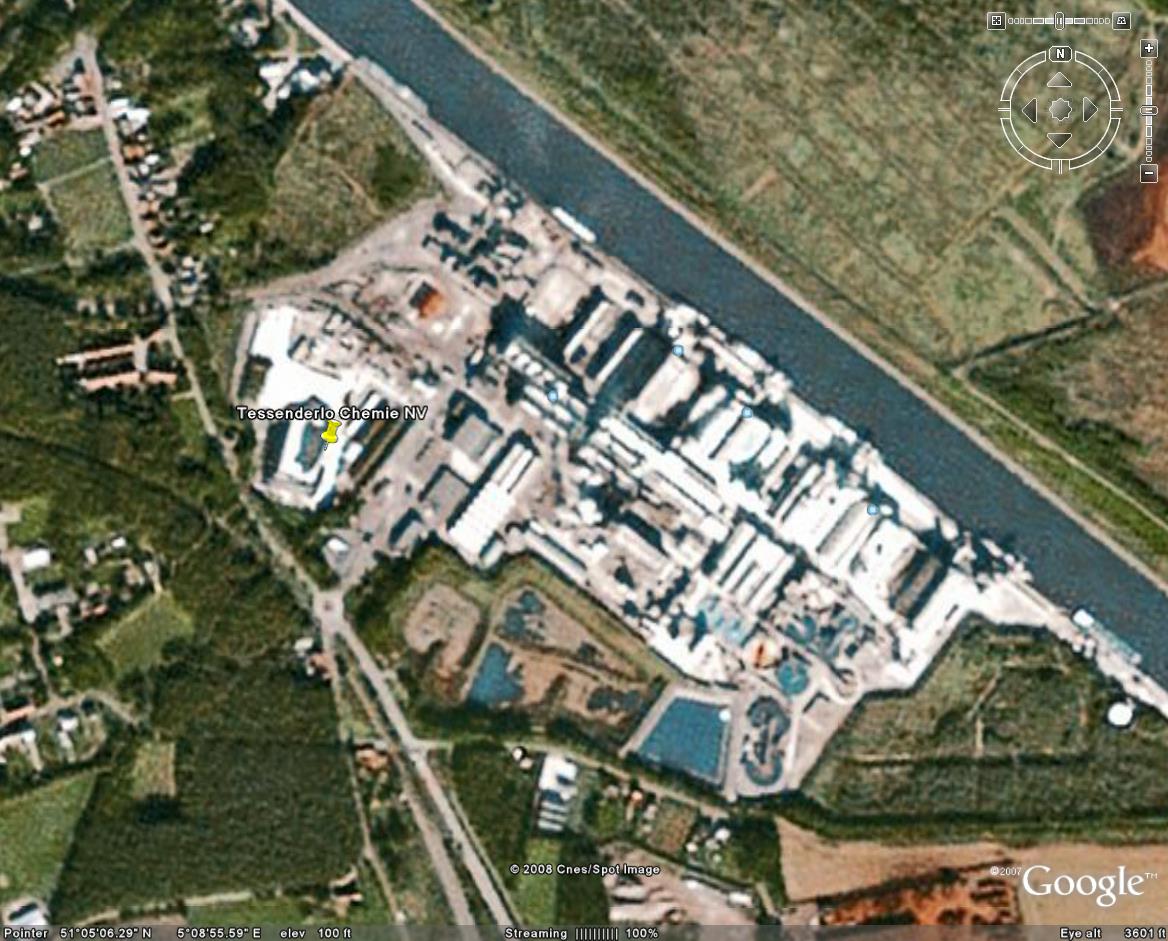

Pictures
General

MTPD - Metric Tonne per Day
MTPA - Metric Tonne per Annum
SA - Single Absorption
DA - Double Absorption
