Acid Plant Database  June 13, 2015

Owner Lenzing (Nanjing) Fibers Co., Ltd.

Location Hongshan Fine Chemical Industry Park
No. 1 Kangqiang Road
Nanjing
Jiangsu Province
China
Background Joint venture between Nanjing Chemical Fibre Co., Ltd. (Nanjing, People’s Republic of China) and Lenzing AG (Austria)
Website www.lenzing.com
Plant -
Coordinates* 32° 16' 60" N, 118° 52' 31" E
Type of Plant Wet-Gas Sulphuric Acid (WSA)
Gas Source Viscose Fibre Production: H2S, CS2, sulphur
Plant Capacity 300 STPD
Gas Flow: 80,000 Nm3/h, 3.6% SO
2
SA/DA SA
Status Operating
Year Built 2007
Technology -
Contractor Haldor Topsøe
Remarks -

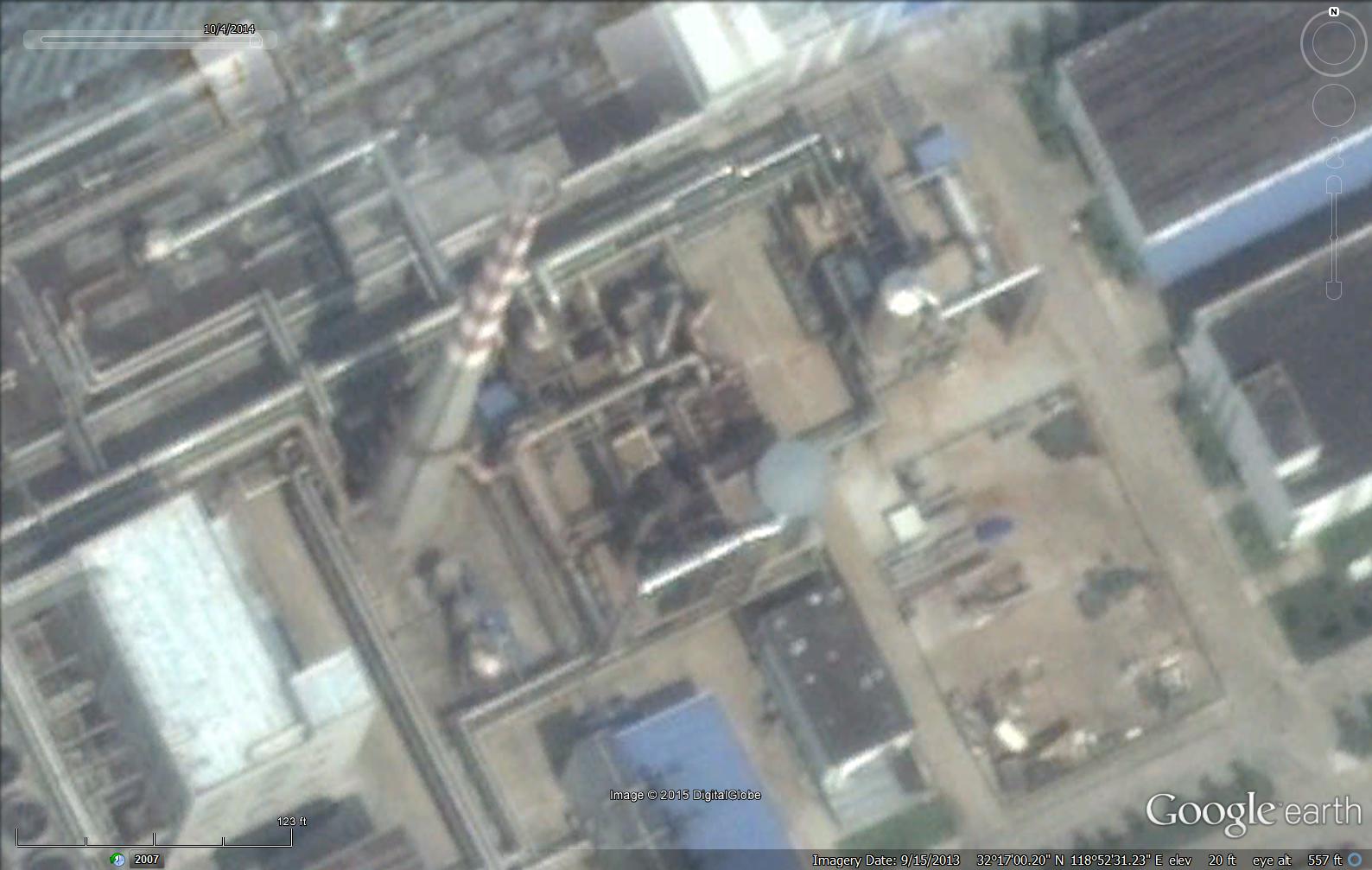

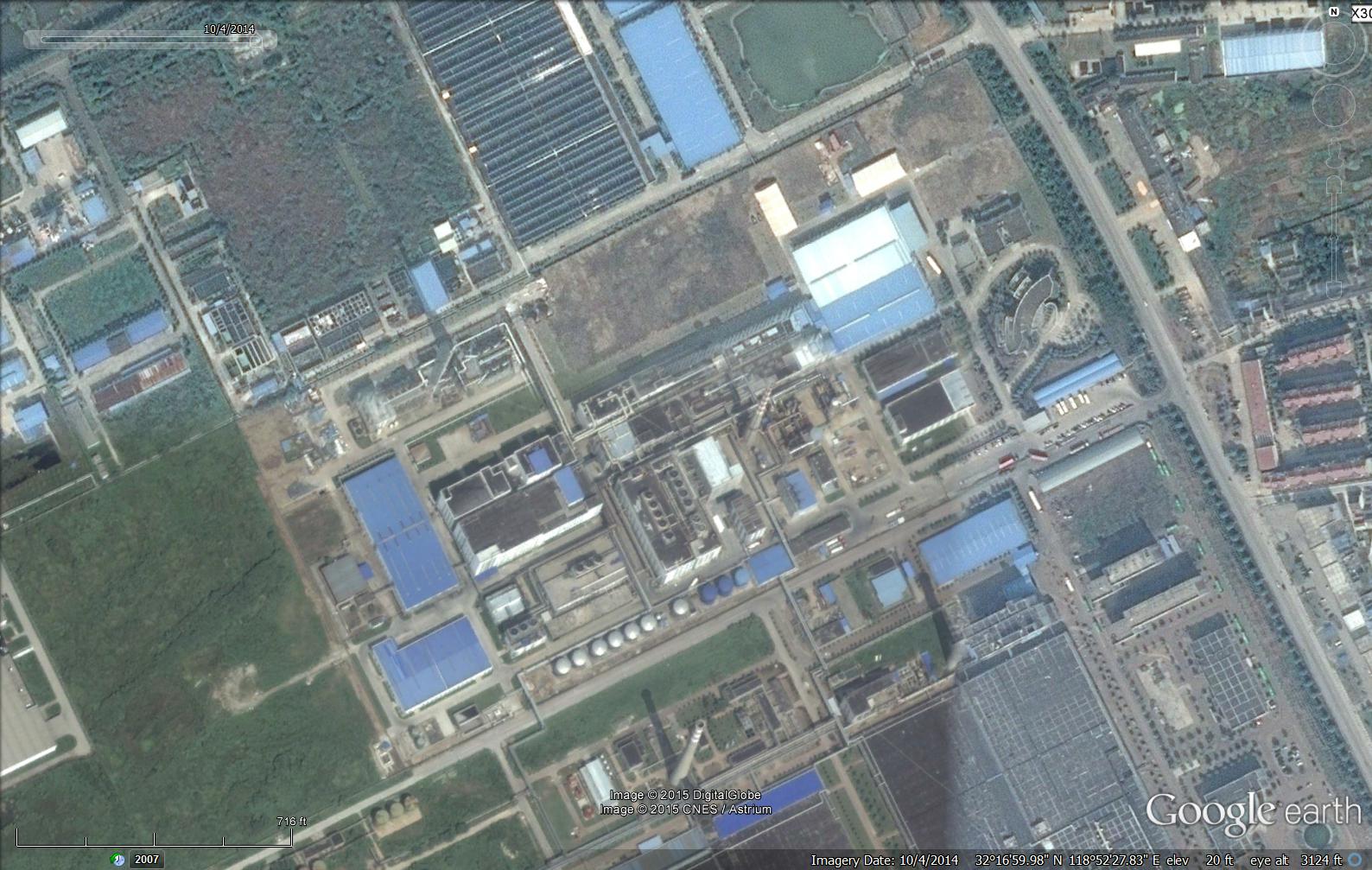

Pictures
General Production of sulphuric acid for a grass root viscose staple fibre factory located just outside Nanjing in China's Jiangsu Province. The WSA plant eliminates hydrogen sulphide and carbon disulphide contained in the off-gases by converting these sulphur compounds into sulphuric acid. The off-gas volume treated is 80,000 Nm³/h, and 300 ton/day of acid can be produced.

Sulphuric acid is a material used in the production of viscose fibres, so in addition to the environmental effect, the recovery of sulphuric acid will entail considerable savings. The WSA plant is very energy efficient, and excess heat of reaction from the process is recovered in the form of high pressure superheated steam. The steam will be de-superheated and used for process applications in the fibre production, thus reducing fuel consumption for the main boiler to the benefit of both the economy and the environment.
References -
News -

MTPD - Metric Tonne per Day           STPD - Short Ton per Day
MTPA - Metric Tonne per Annum      STPA - Short Ton per Annum
SA - Single Absorption
DA - Double Absorption


* Coordinates can be used to locate plant on Google Earth
