Acid Plant Database  August 17, 2015

Owner

Indo Maroc Phosphore SA (IMACID)

-

Location

Jorf Lasfar
Morocco

Background Originally 50:50 joint venture between The Group OCP (Morocco) and BIRLA - CFCL (India)
Website -
Plant -
Coordinates* 33° 6' 14" N, 8° 35' 41"
Type of Plant Sulphur Burning
Gas Source Elemental Sulphur
SO2: 11.8%
Plant Capacity 3860 MTPD
SA/DA 3/1 DA
Status Operating
Year Built -
Technology MECS
Contractor - Sofrecid-Kvaerner Process (France) supplied detailed engineering
- IMACID purchased and procured equipment
Remarks - GEC-Alsthom (France) supplied power station on a turnkey basis (27 MW)
- Overall project schedule: 30 months
- Located at the same site as Maroc Phosphore III & IV. Original site was developed with consideration for the expansion of the production capacity.
- Enable project to benefit from existing infrastruture (i.e. port, railway, roads, storage, electrical distribution, effluent collection and treatment, sea water and fresh water supply, workshops, etc.

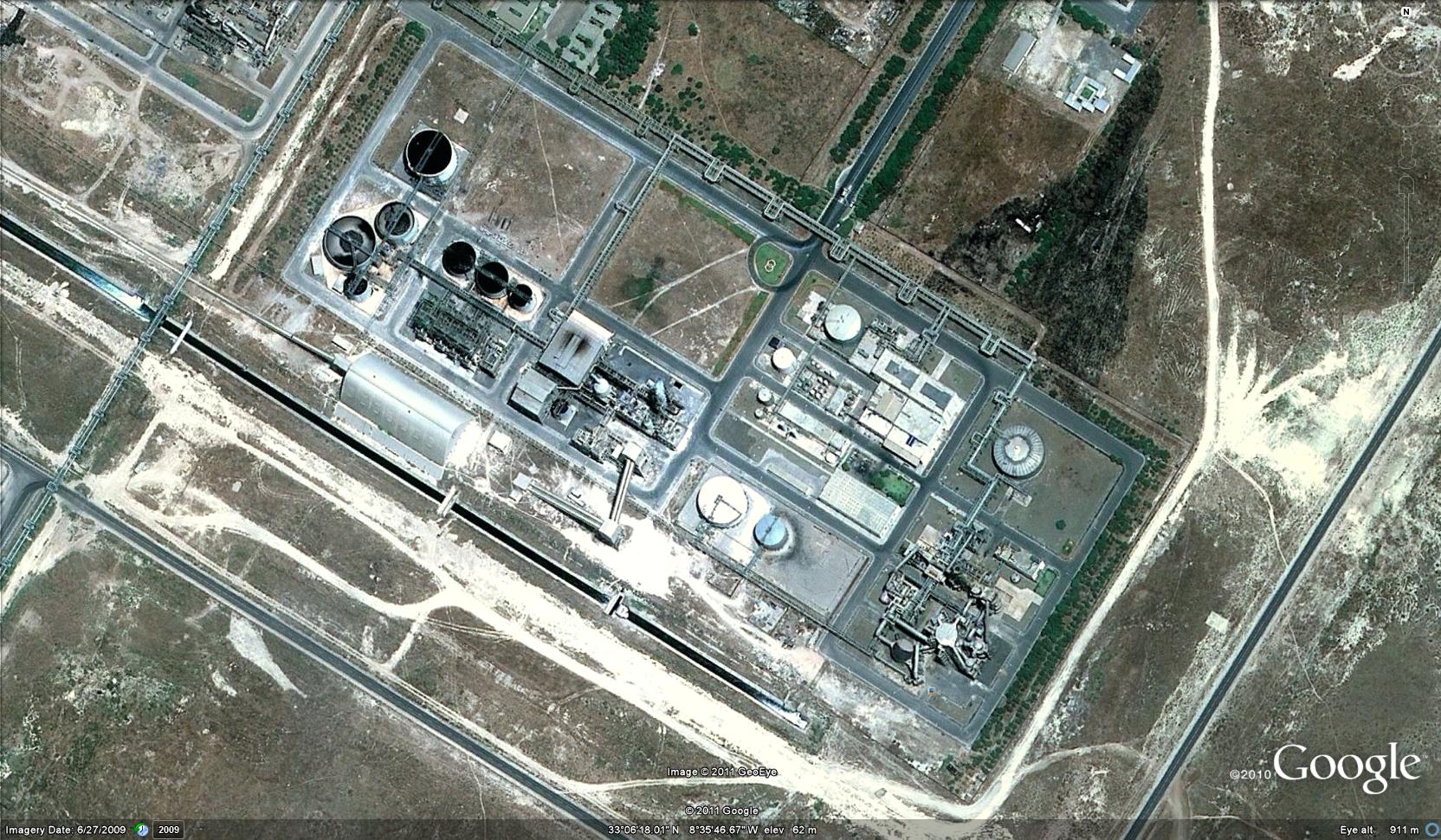

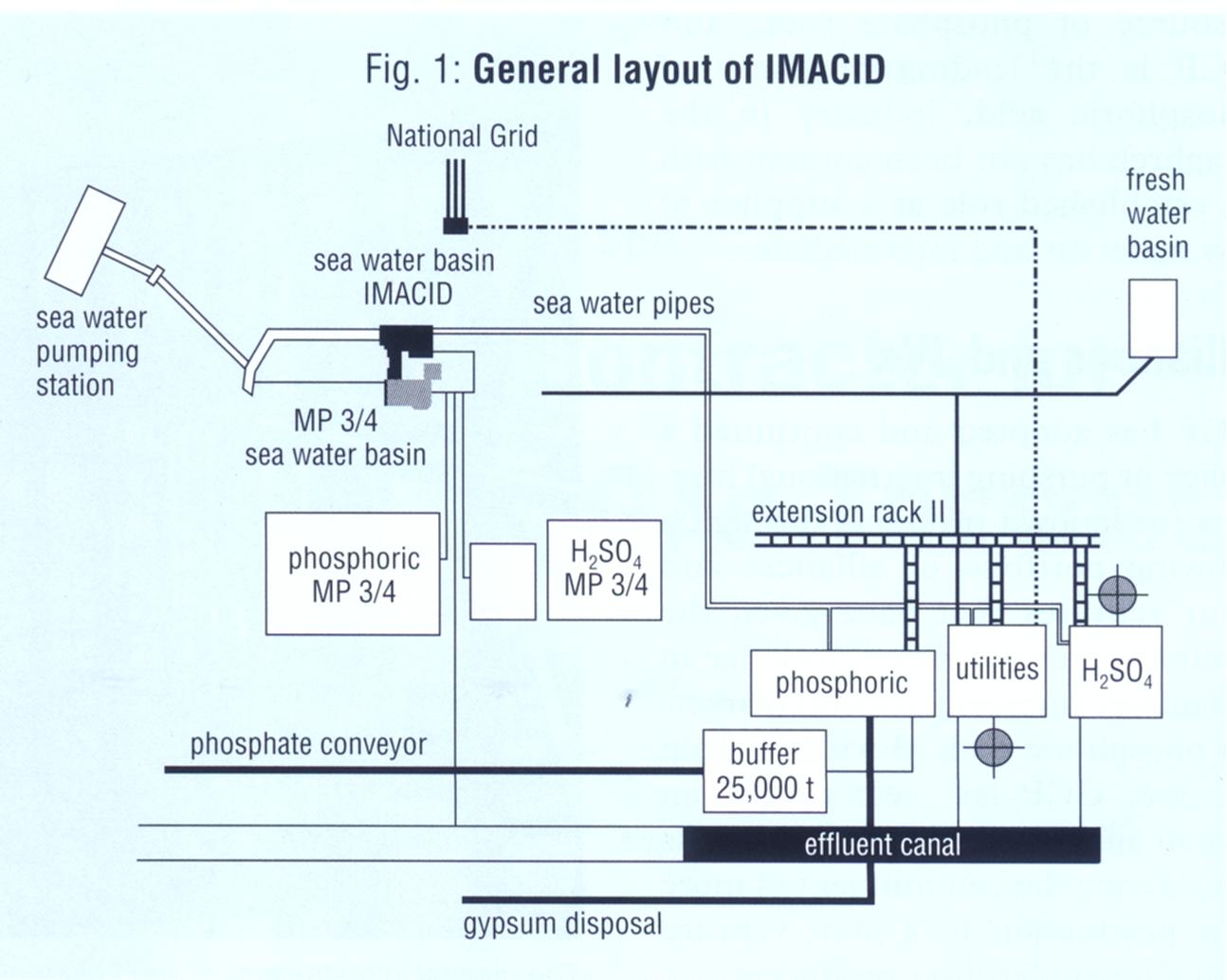

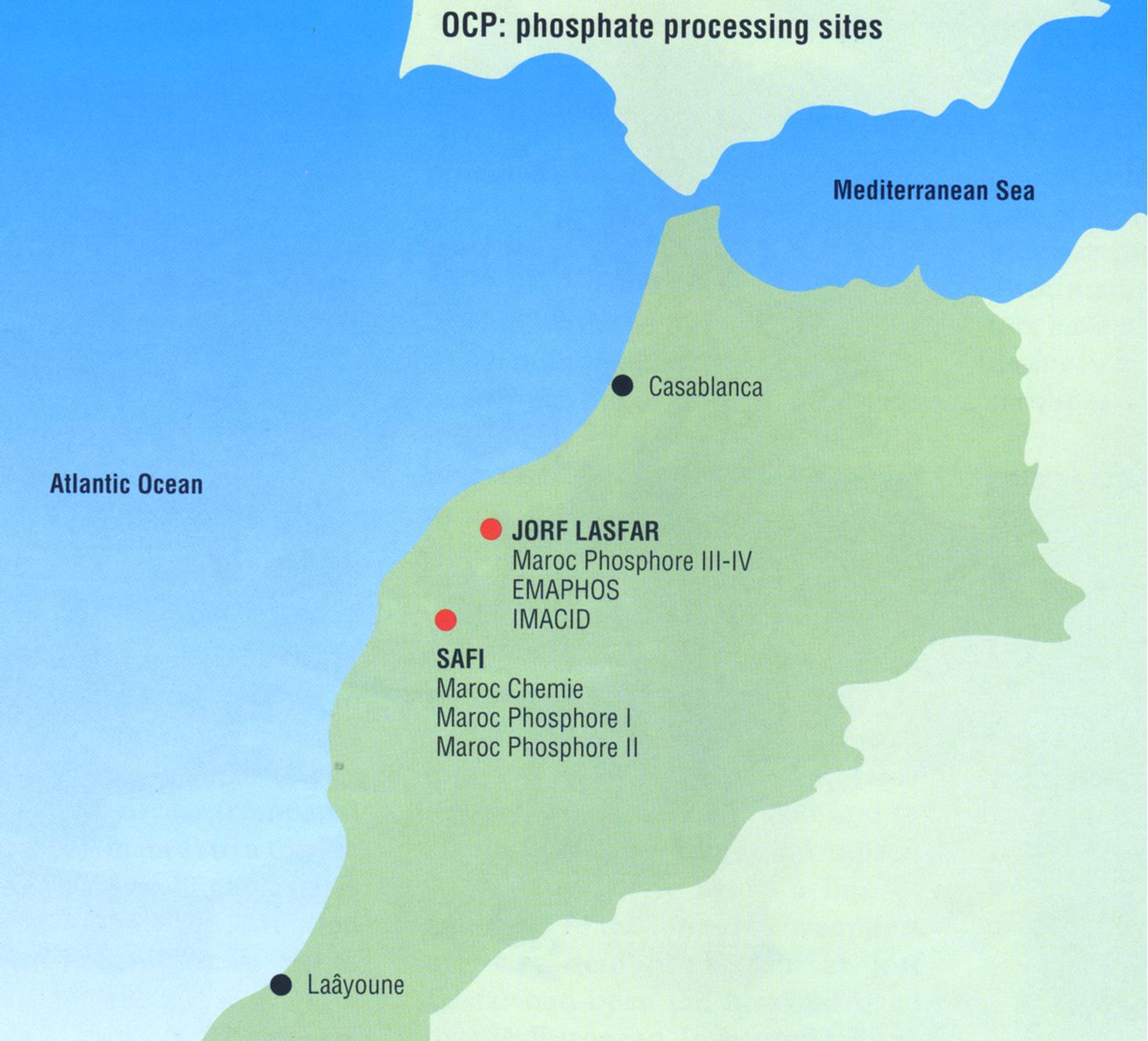

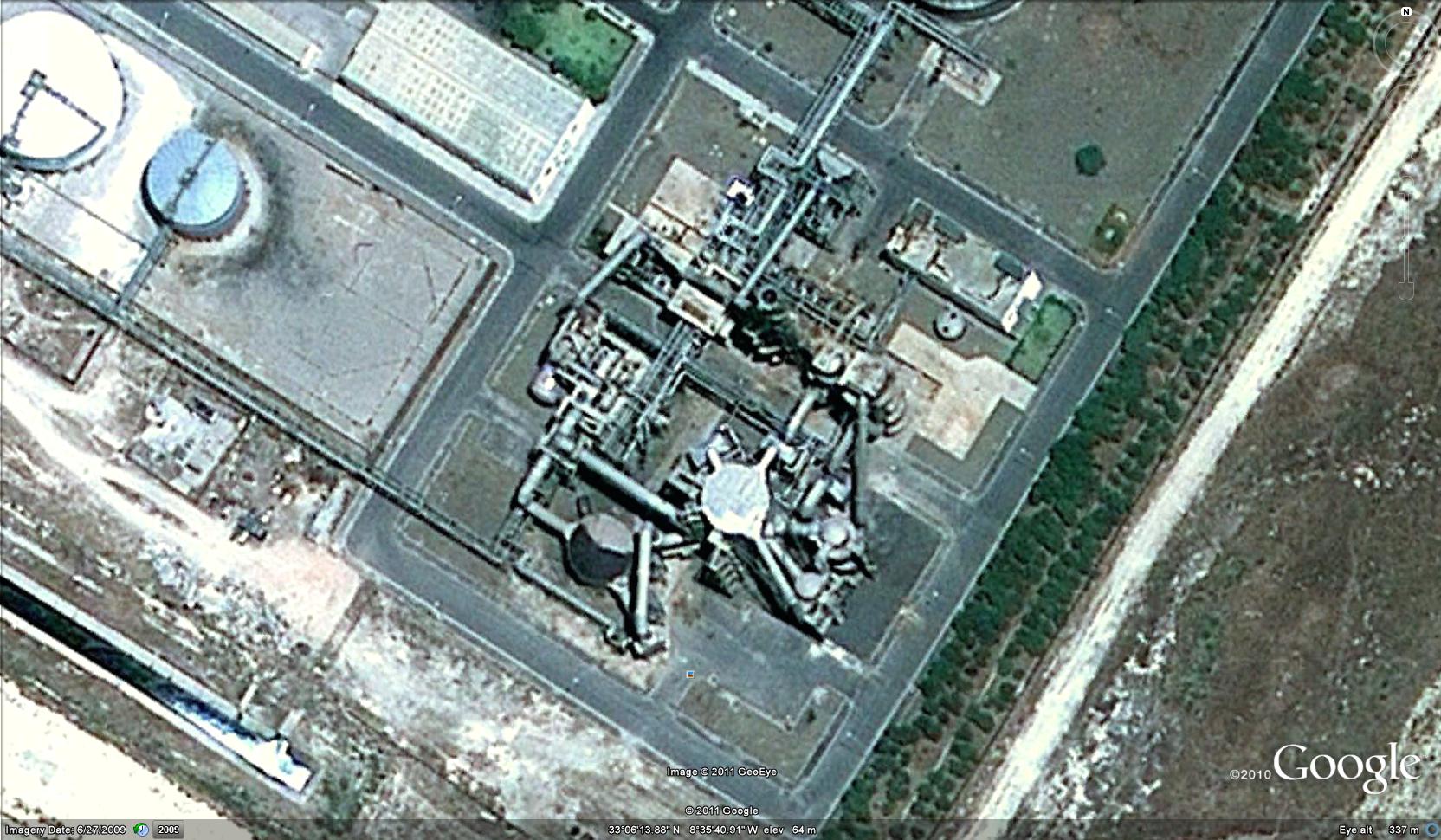

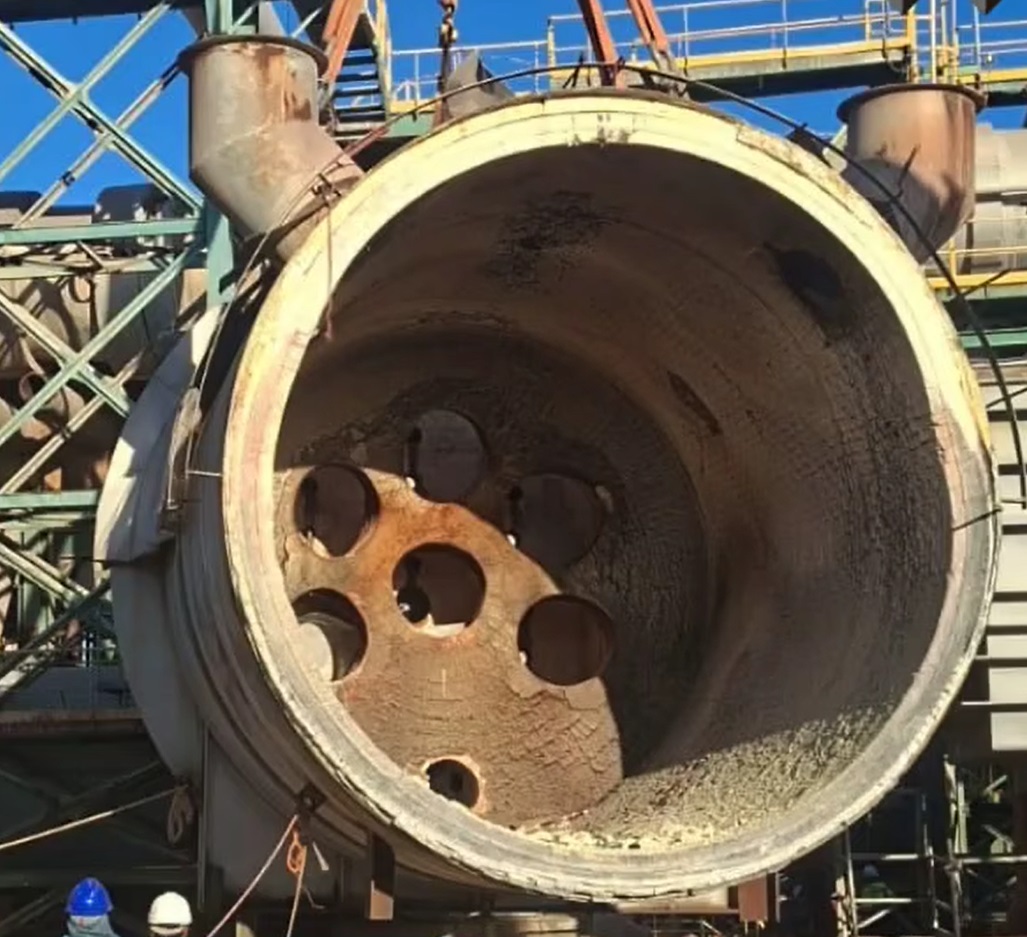

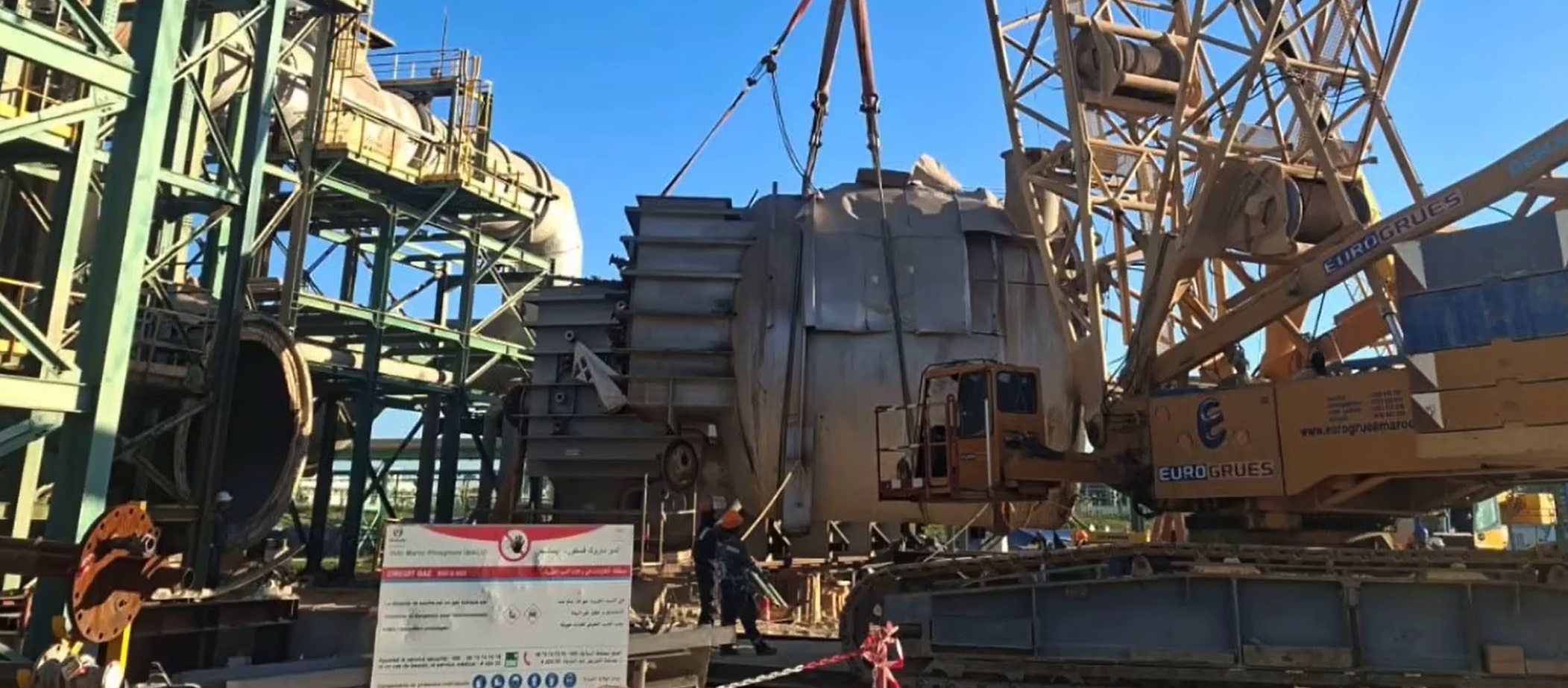

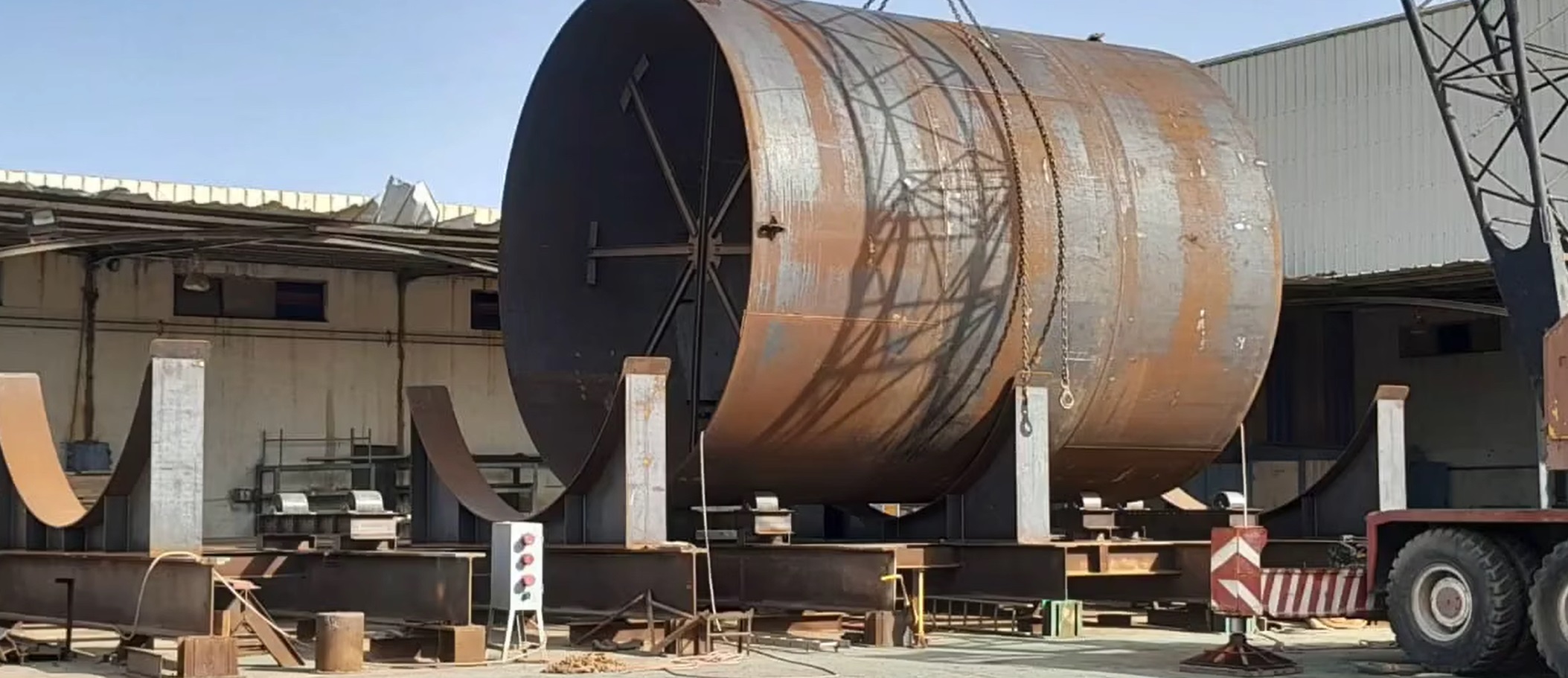

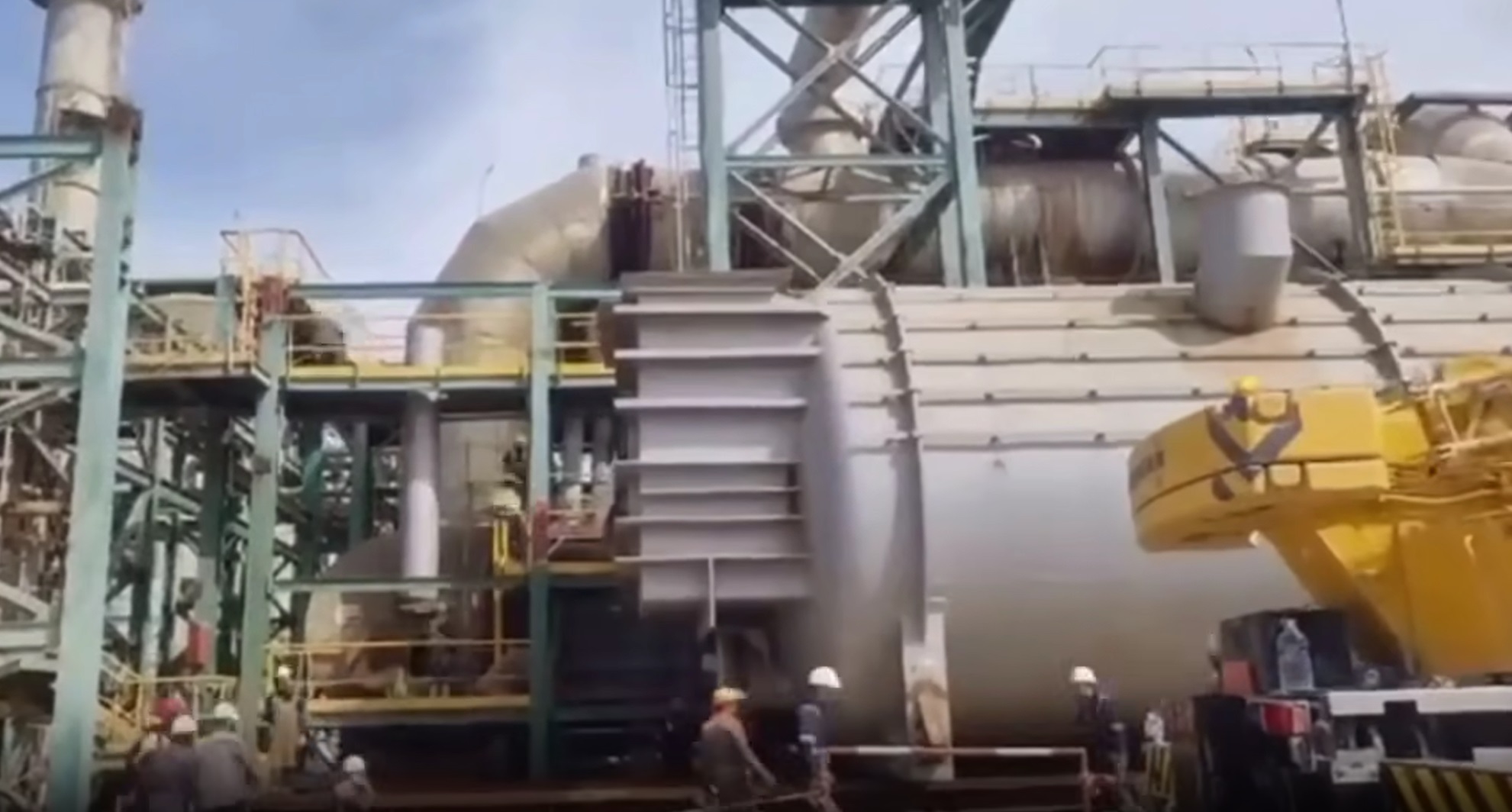

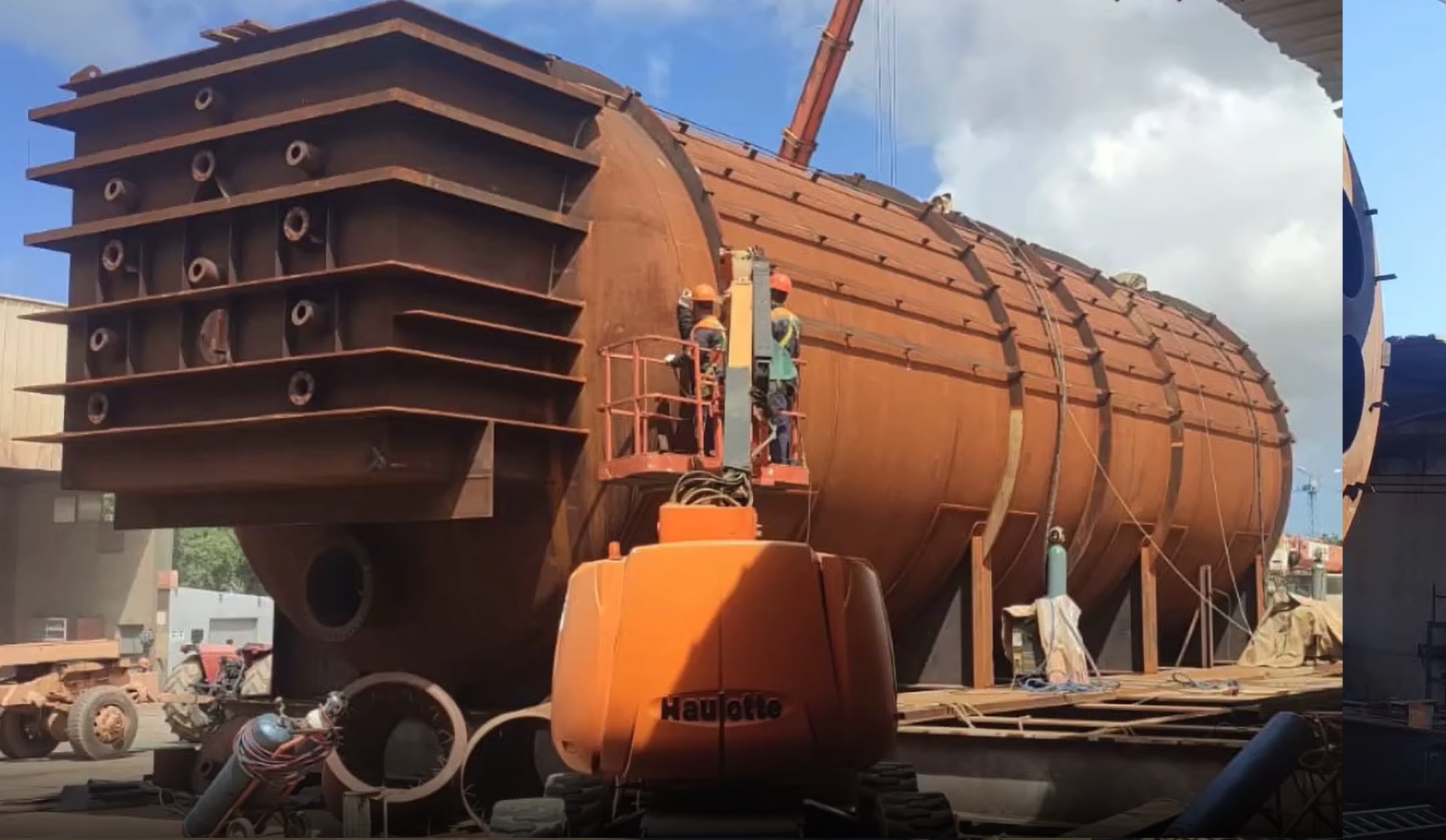

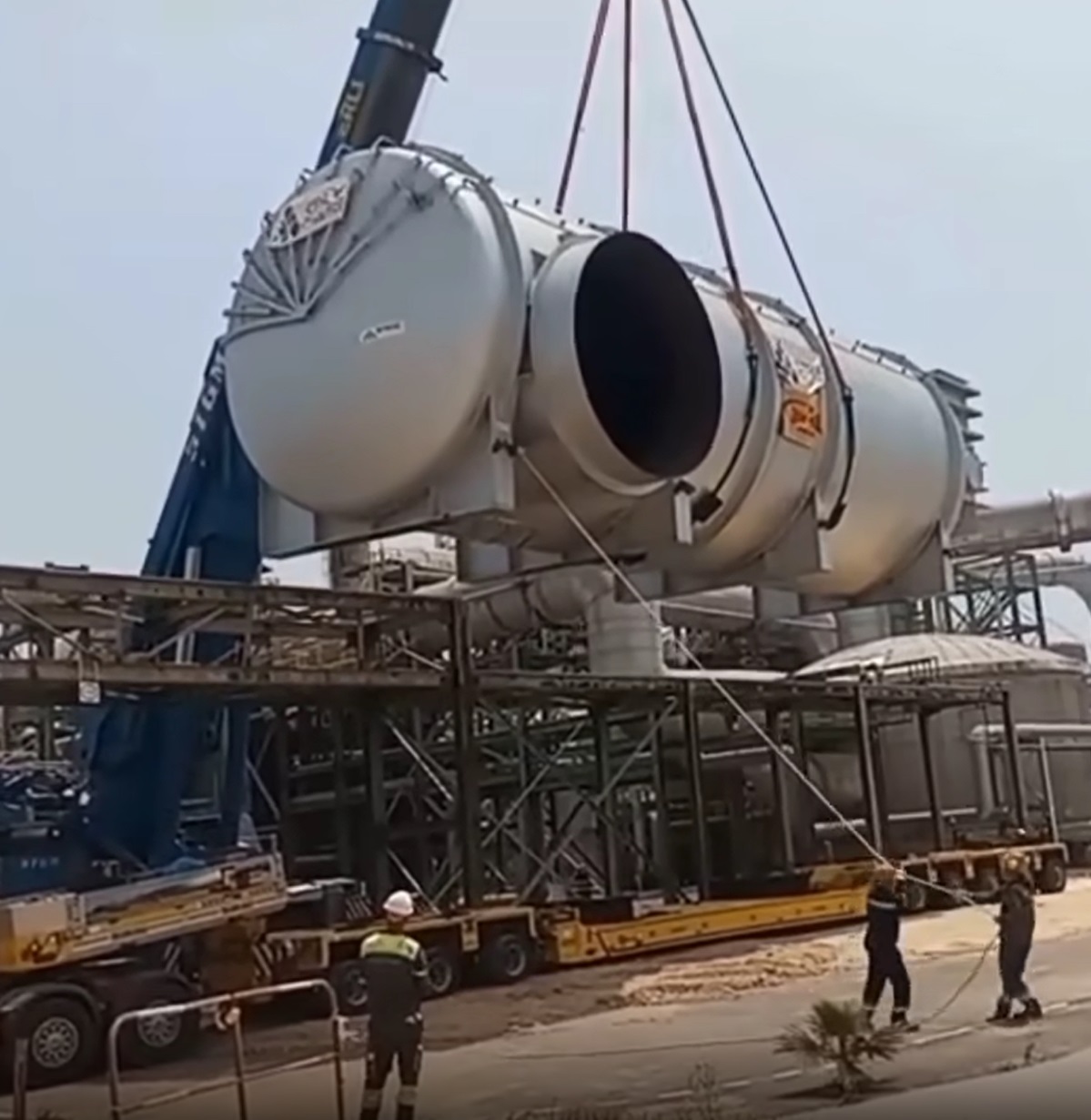

Pictures IMACID-Jorf-Lasfar-1.jpg (424312 bytes)  IMACID-Jorf-Lasfar-3.jpg (291472 bytes) IMACID-Jorf-Lasfar-2.JPG (105935 bytes)  MorrocoMap.JPG (210003 bytes)
General

Indo Maroc Phosphore SA (IMACID), a Joint Venture, between Chambal and Office Cherifen Des Phosphate (OCP) commenced commercial production in November 1999 at the port of Jorf Lasfar, Morocco. The IMACID Factory produces 3,300 MT per day of Sulphuric Acid. Subsequently, both Chambal and OCP disinvested one third of their respective holdings in IMACID to Tata Chemicals Limited.

References -
News -

MTPD - Metric Tonne per Day           STPD - Short Ton per Day
MTPA - Metric Tonne per Annum      STPA - Short Ton per Annum
SA - Single Absorption
DA - Double Absorption


* Coordinates can be used to locate plant on Google Earth
