Acid Plant Database June 22, 2014

Owner BASF Corporation Agricultural Products
Background Formerly
American Cyanamid Company
Location 3150 Highway JJ
Palmyra, Missouri
USA  63461
Website -
Plant Hannibal Site
Coordinates* 39° 50' 3" N, 91° 25' 56" W
Type of Plant Acid Regeneration
Gas Source H2S gas
Plant Capacity 260 STPD
SA/DA -
Emissions SO2: < 4.0 lb/ton, 3 hour average for longer than 12 h in any single start-up
         < 20 start-ups per consecutive 12 month where SO2 emissions are exceeded
         186 tons per consecutive 12 month period
NOx: 244 tons in any consecutive 12 month period
Status Operating
Year Built 1989
Technology MECS
Contractor -
Remarks Two-stage decomposition furnace
DynaWave gas scrubbing and cooling
SX alloy acid piping system
Permits State of Missouri Department of Natural Resources
Permit No. Issue Date Expiry Date Details
CP 0488-001 - - Construction Permit
- - - -

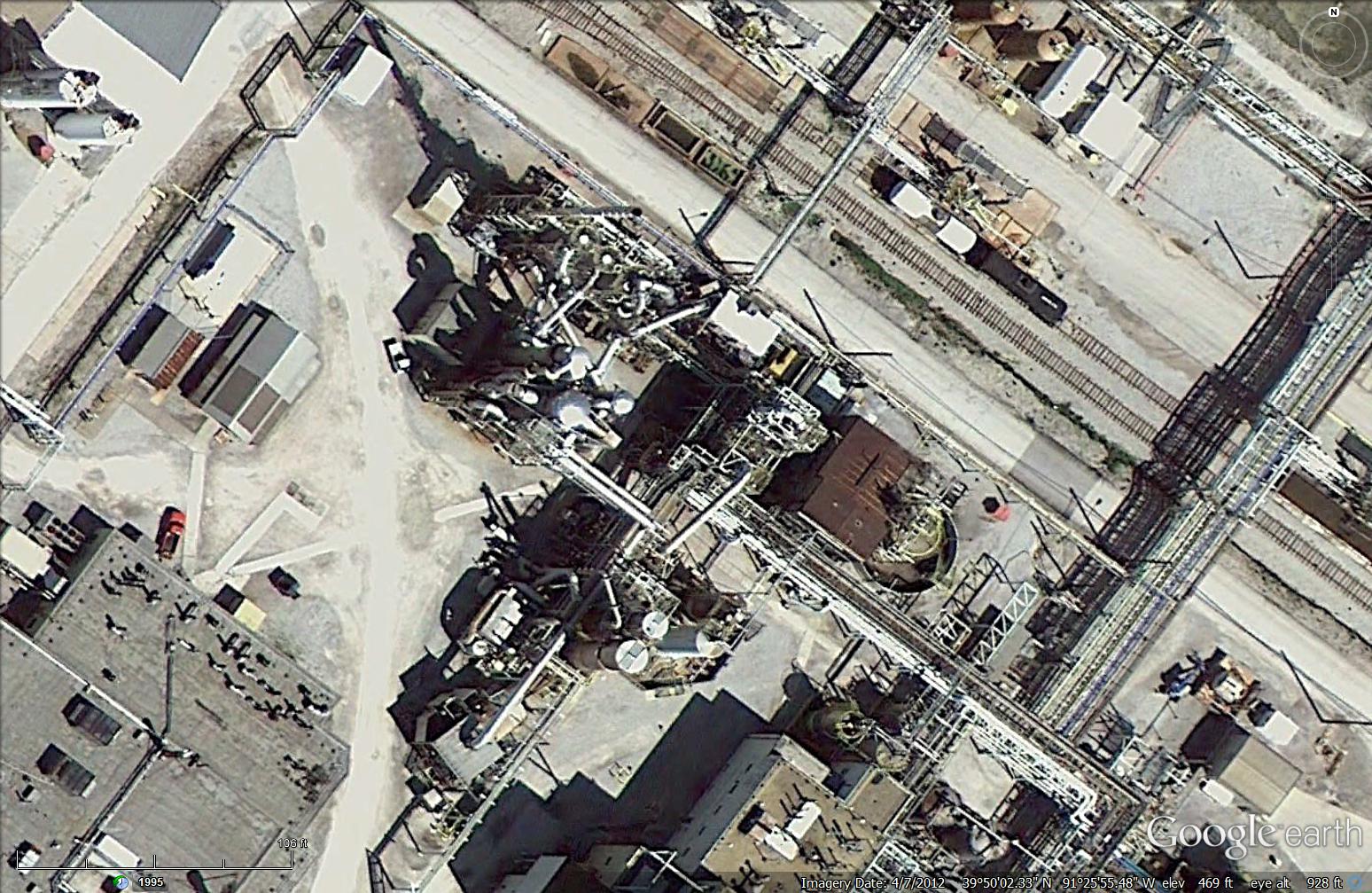

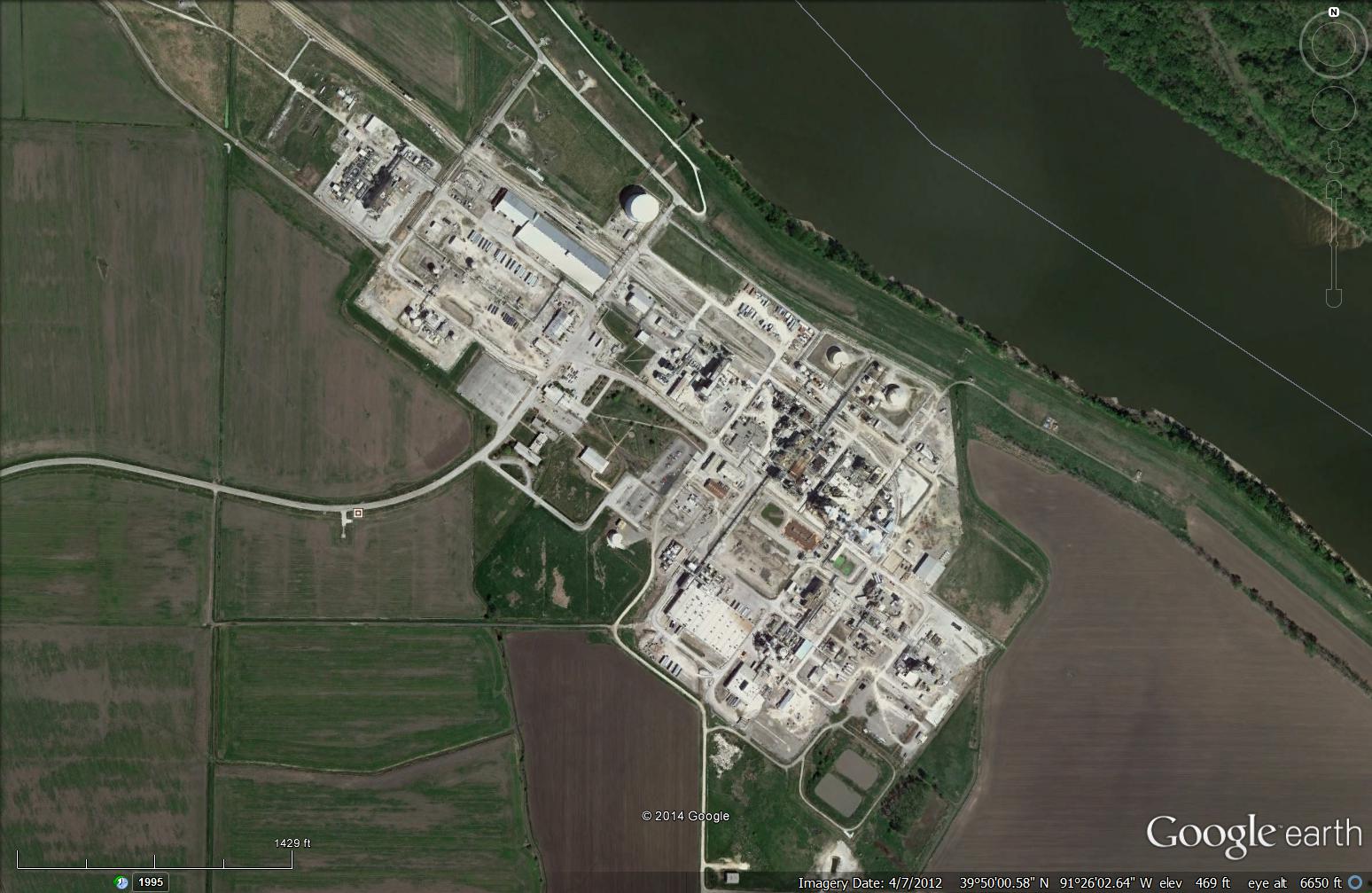

Pictures
General -
References -
News -

MTPD - Metric Tonne per Day           STPD - Short Ton per Day
MTPA - Metric Tonne per Annum      STPA - Short Ton per Annum
SA - Single Absorption
DA - Double Absorption


* Coordinates can be used to locate plant on Google Earth
