Acid Plant Database January 13, 2010
| Owner | Xstrata Zinc |
|
| Background | - | |
| Location | Torrelavega Spain |
|
| Website |
www.azsa.es www.xstrata.com |
|
| Plant | Hinojedo Smelter | |
| Coordinates* | - | |
| Type of Plant | Metallurgical | |
| Gas Source | Zinc
Roaster 30,000 tpy zinc calcine |
|
| Plant Capacity | 36,500 STPA Liquid SO2 | |
| SA/DA | Not Applicable | |
| Emissions | - | |
| Status | Operating | |
| Year Built | - | |
| Technology | - | |
| Contractor | - | |
| Remarks | Liquid SO2 plant only - No sulphuric acid plant | |

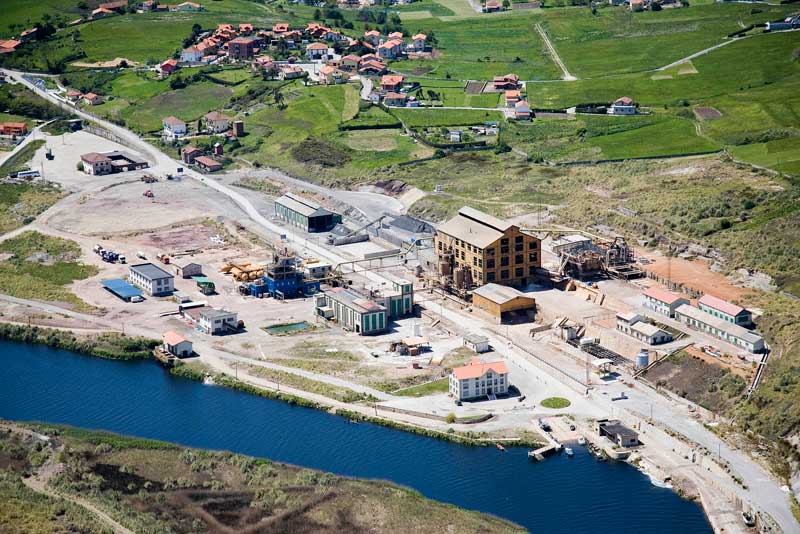

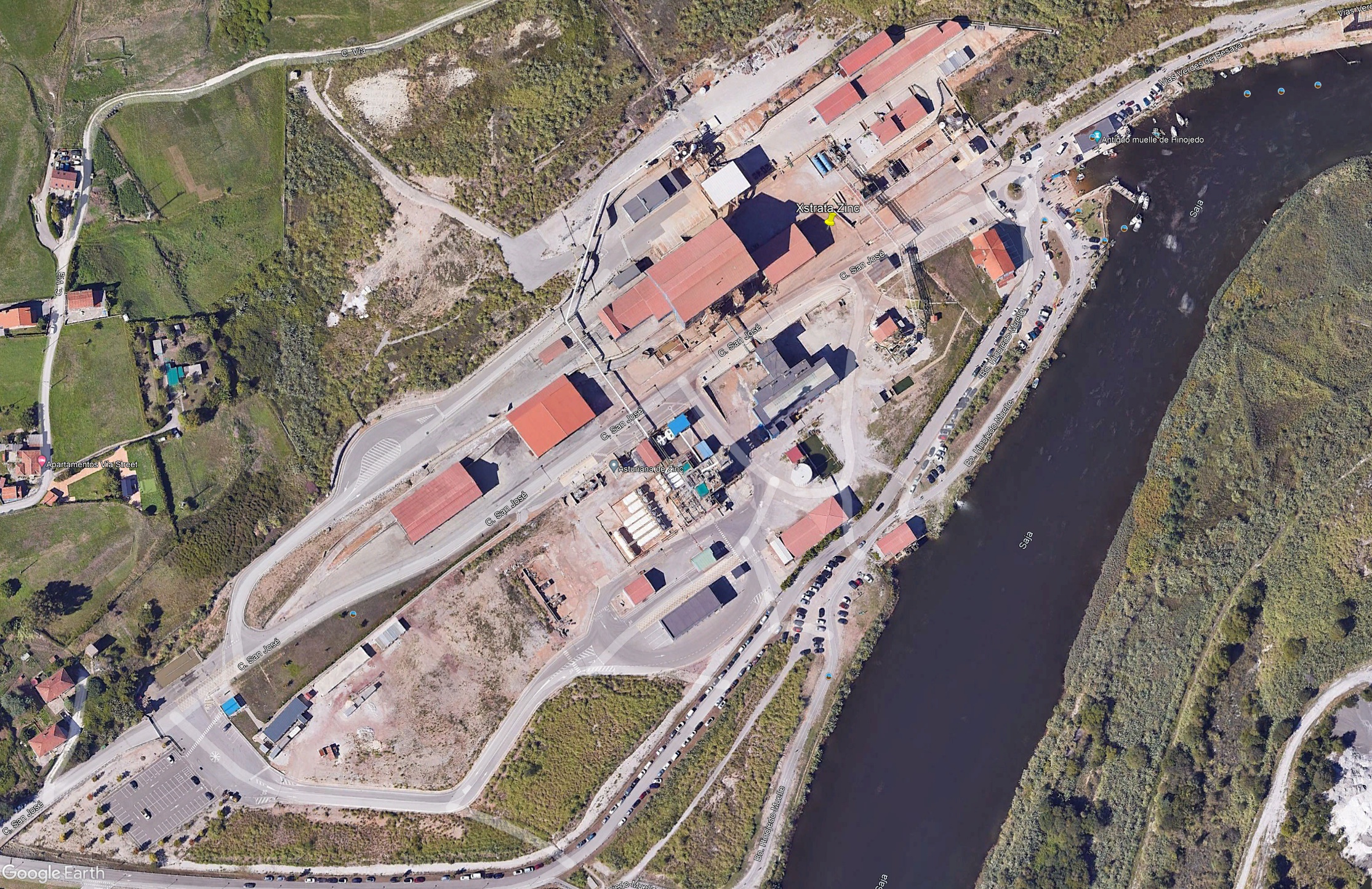

| Pictures |  |
|
| General | The
Hinojedo plant dates from 1929 and is situated 5 km north of Torrelavega, on

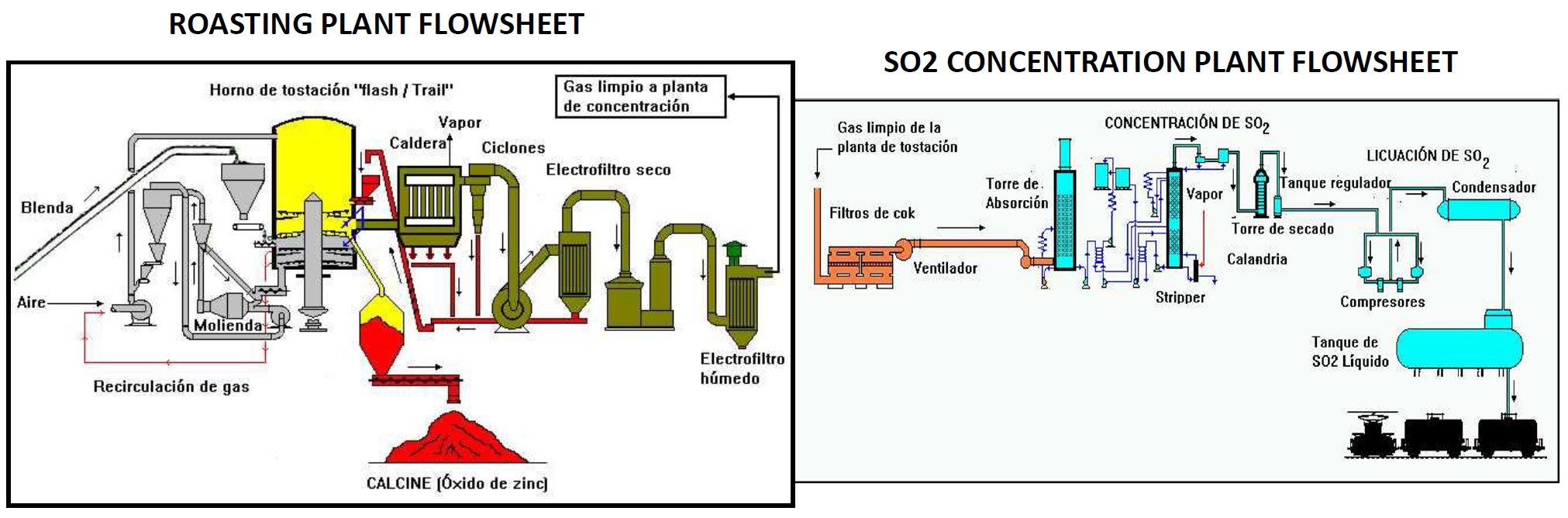

the left bank of the estuary of San Martín. It has its own port facilities. The Hinojedo roasting plant is located near the port of Santander in Cantabria. Zinc concentrates are processed by this plant to obtain calcine and liquid SO2. Its main facilities are a flash roaster and equipment to liquefy the sulphur dioxide produced by the roaster. Following cessation of mining activity at the Xstrata Group’s former Reocín mine in Cantabria, which closed in 2003, concentrates purchased from third parties are being treated at the Hinojedo facility to produce calcine which is then transported to the San Juan de Nieva and Nordenham electrolytic zinc plants. |
|
| References | - | |
| News | - | |
MTPD - Metric Tonne per Day
STPD - Short Ton per Day
MTPA - Metric Tonne per Annum STPA - Short Ton per
Annum
SA - Single Absorption
DA - Double Absorption
* Coordinates can be used to
locate plant on Google Earth
