Sulphuric Acid Plant Specifications


Google Search new2.gif (111 bytes)





Acid Plant Database July 21, 2010

Owner Minara Resources


Location Western Australia
Australia
Background Formerly Anaconda Nickel
Website www.minara.com.au
Plant Murrin Murrin
Coordinates* 28º 46' 4" N, 121º 53' 32" E
Type of Plant Sulphur Burner
Gas Source Elemental Sulphur
Plant Capacity 4400 MTPD
4500 MTPD (2008)
SA/DA 3/1 DA
Status Operating
Year Built 1998
Technology MECS
Contractor MECS/BOS Australia
Remarks 2007 - Acid plant refurbished during major shutdown (ref. 2007 4th quarter report)
- outstanding 'legacy' issues that were holding back production were resolved
- Superheater 1B replaced
- Both blowers replaced.  Original blowers were Scheile
- Additional acid storage capacity added
- Gas/gas heat exchanger replaced
- Emergency shutdown system added to acid plant
- Acid plant now able to achieve nameplate capacity

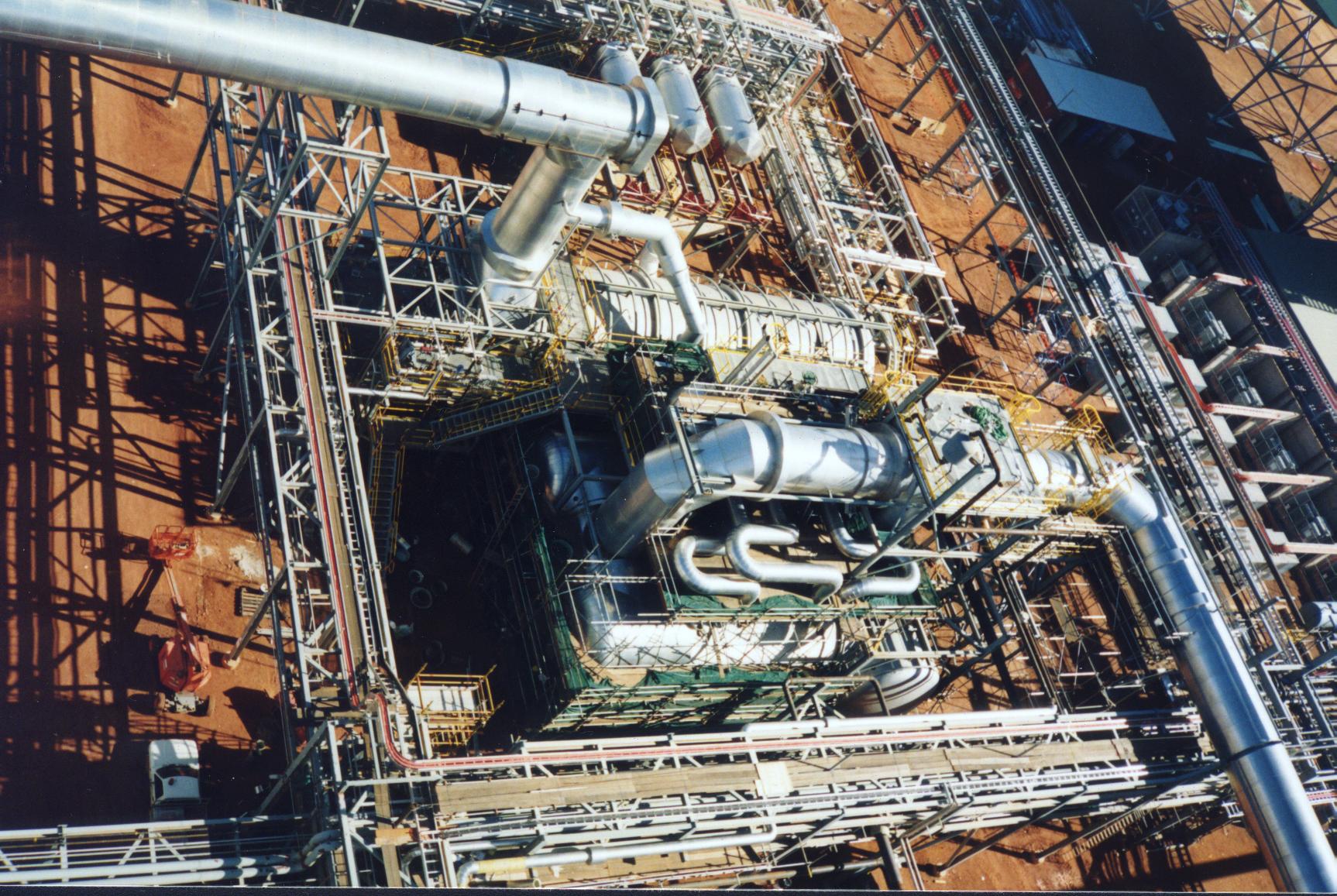

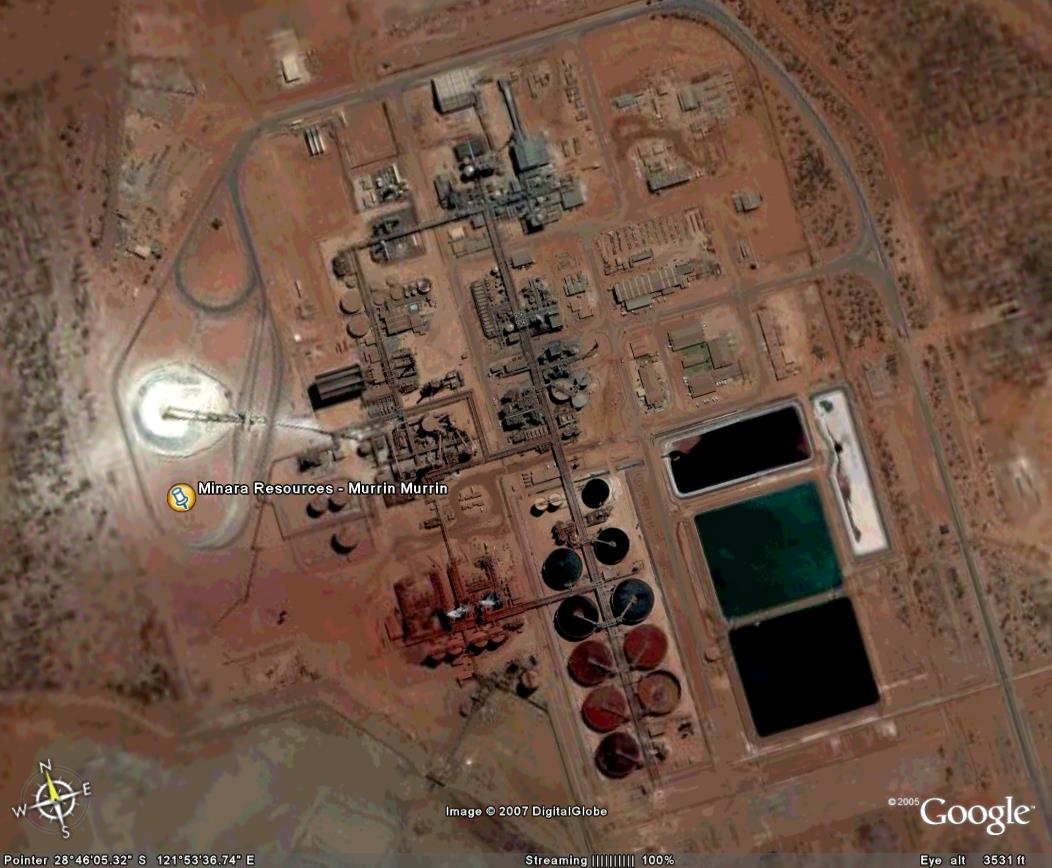

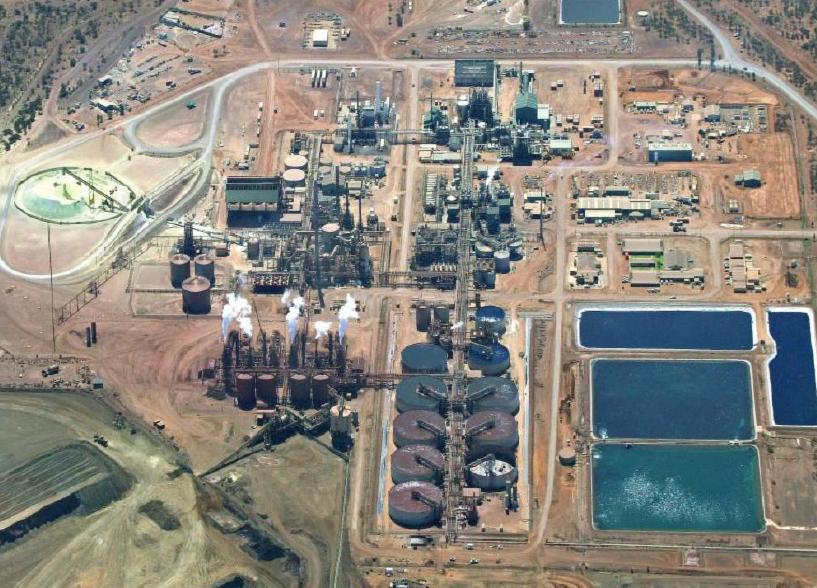

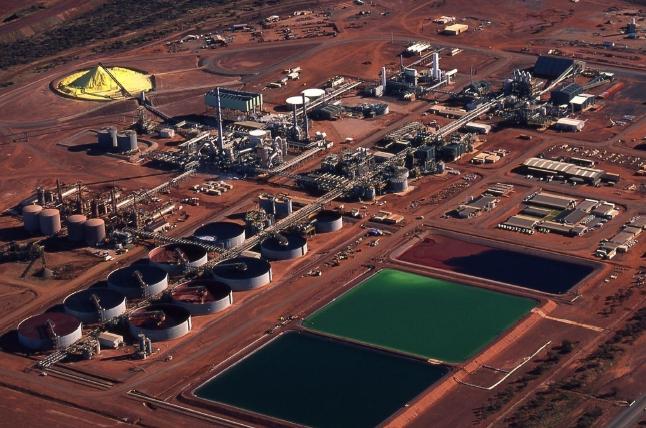

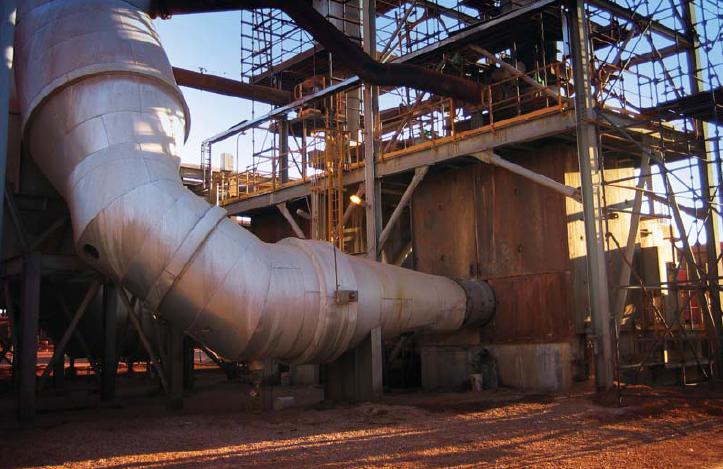

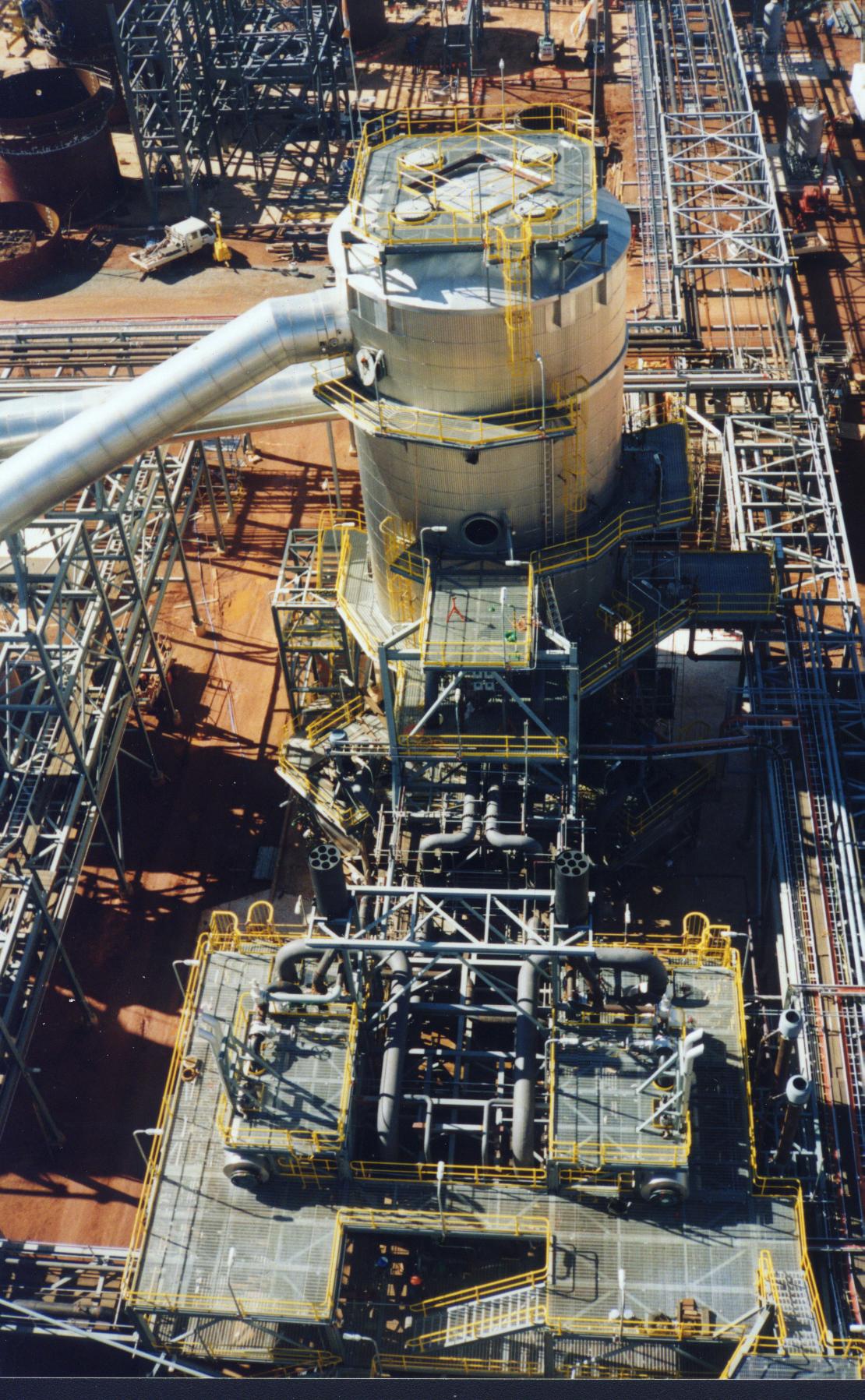

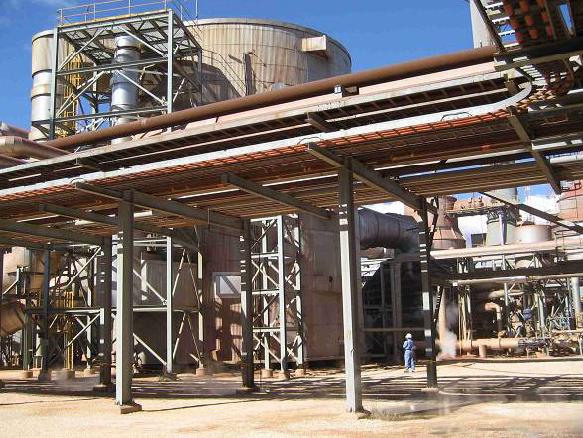

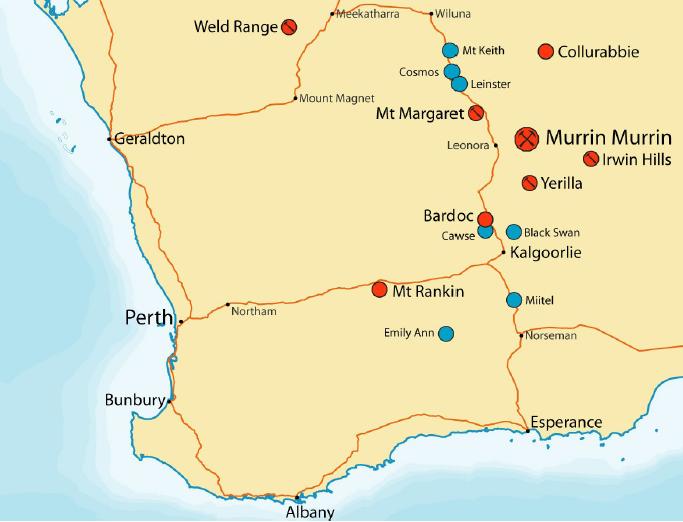

Pictures    Minara-Resources-1.JPG (66683 bytes)  Minara-Resources-2.JPG (37709 bytes)  Minara-Resources-3.JPG (111062 bytes)  Minara-Resources-19.JPG (75676 bytes)  Minara-Resources-20.JPG (67057 bytes)

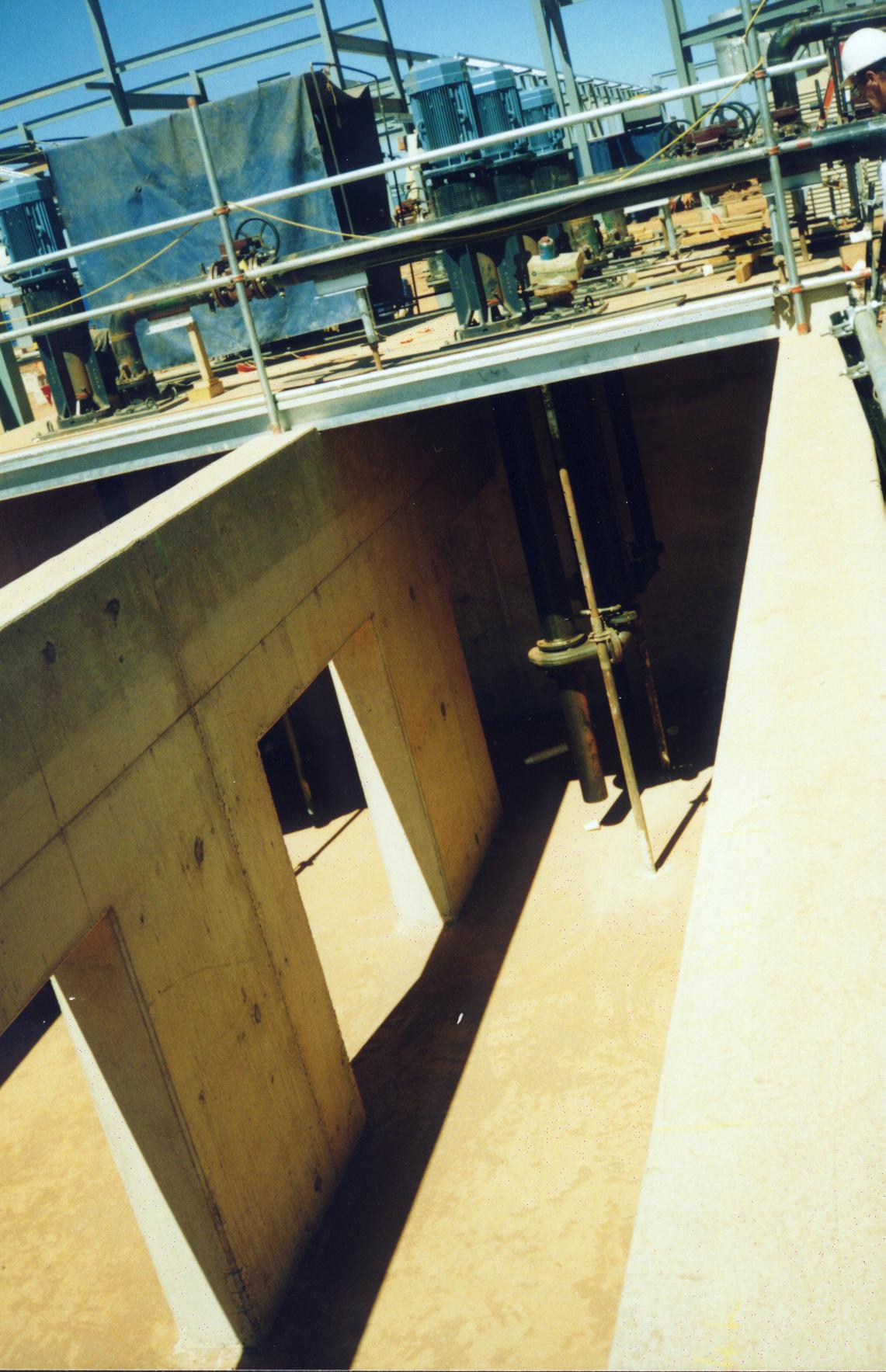

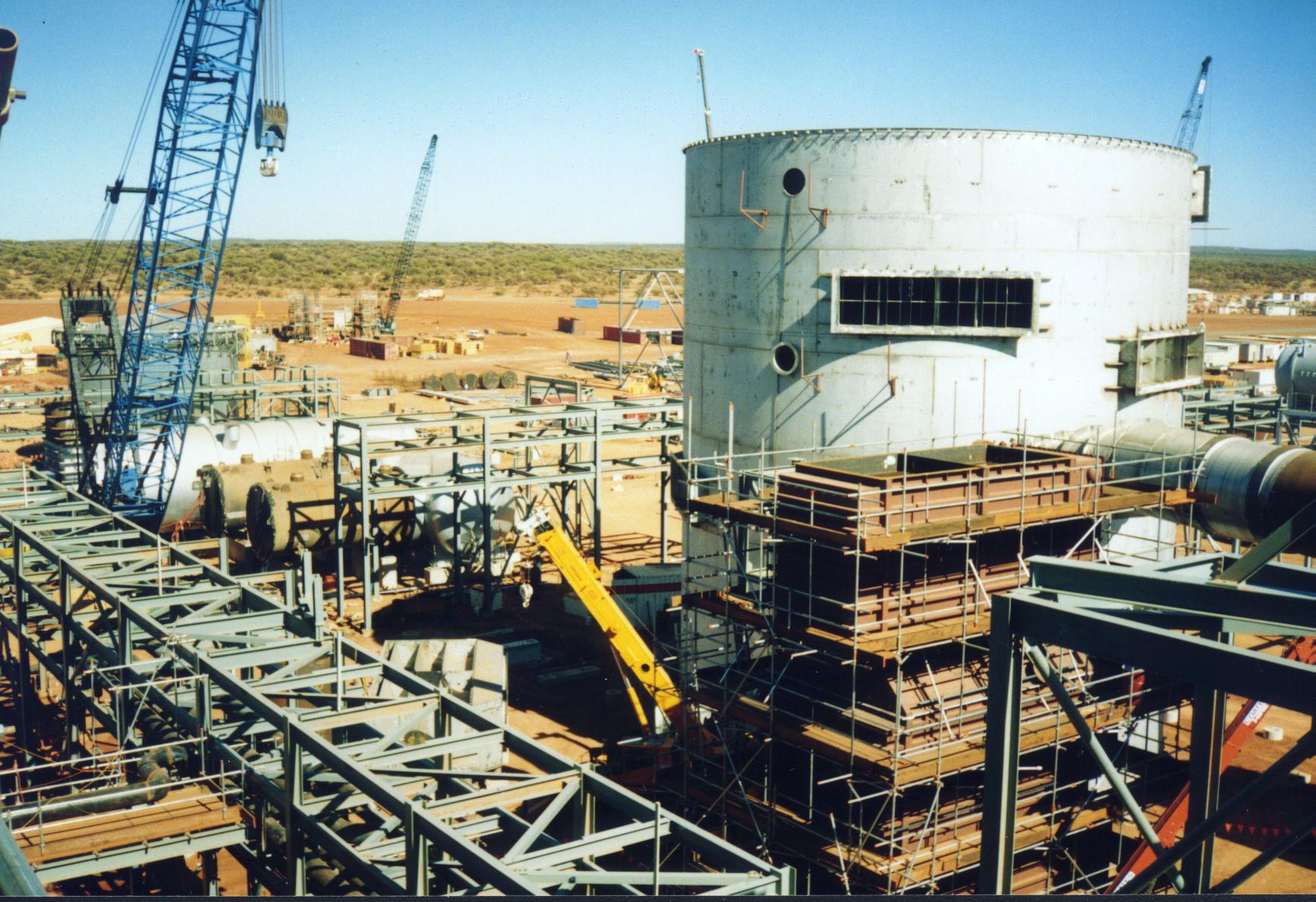

Construction

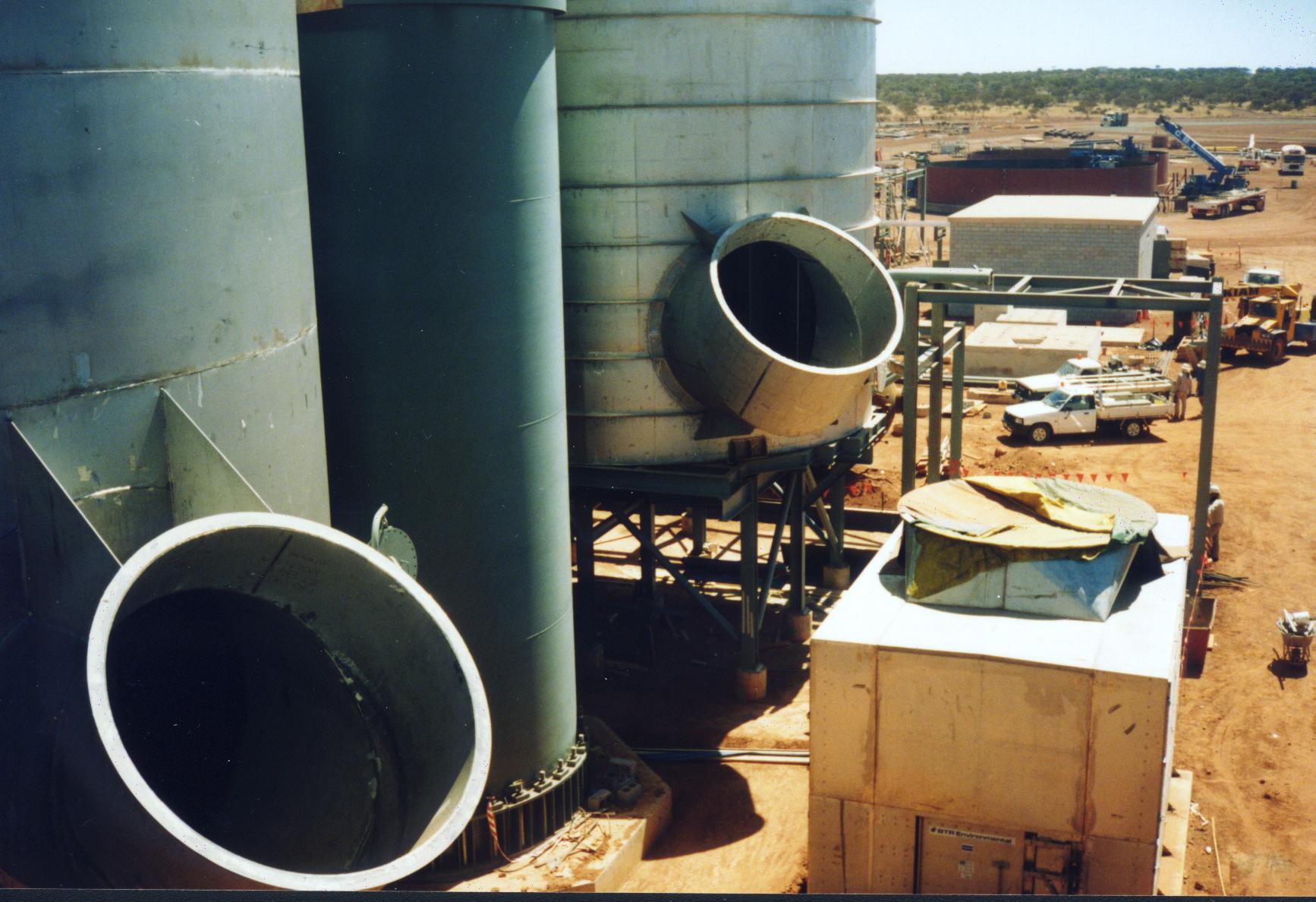

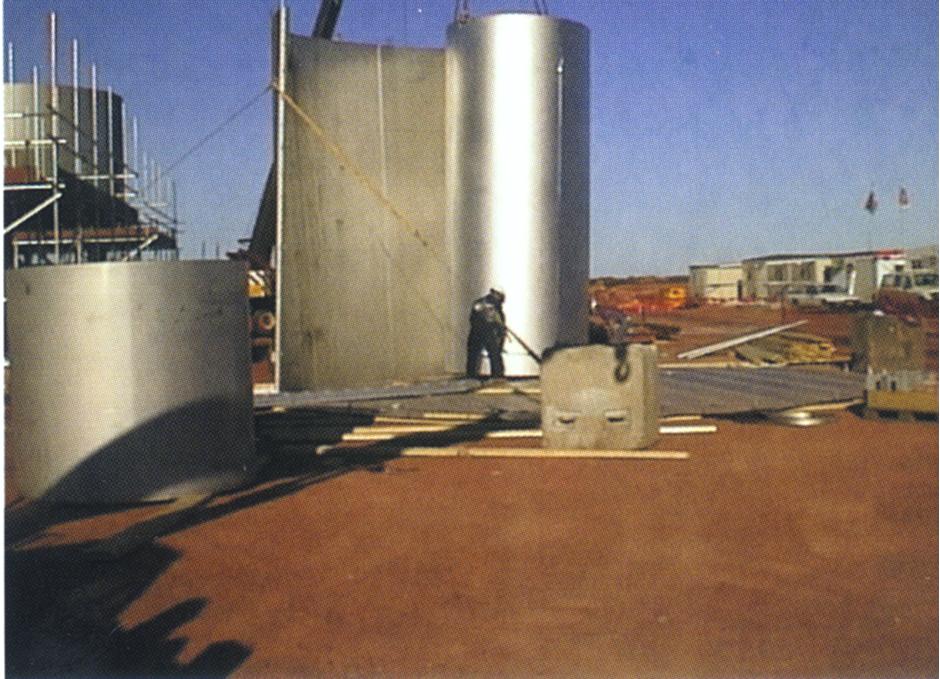

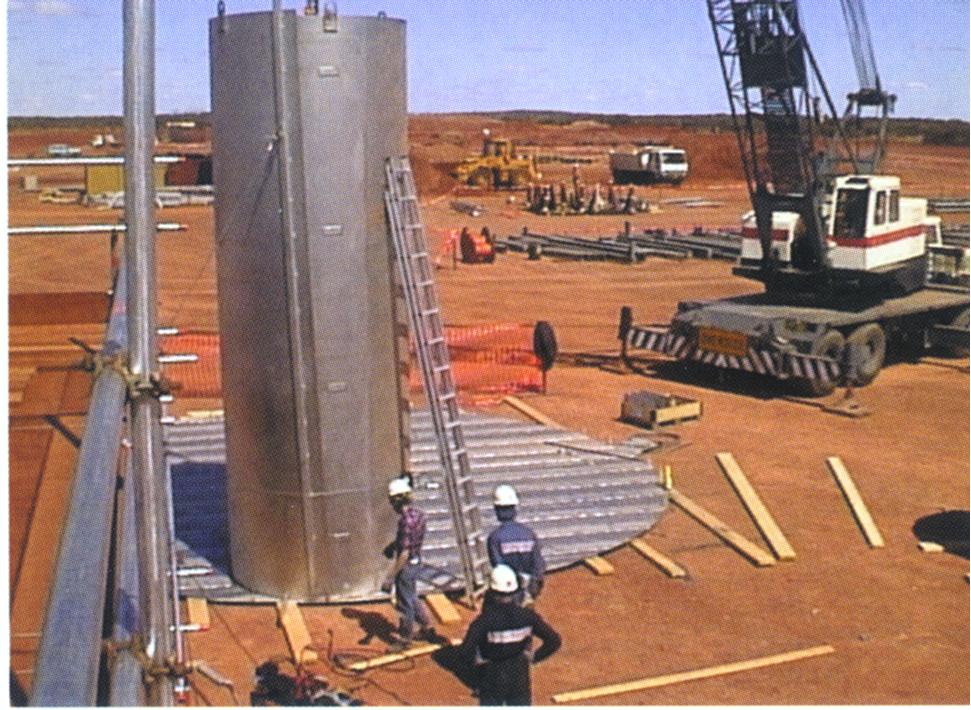

Minara-Construction-1.JPG (235055 bytes)  Minara-Construction-2.JPG (335850 bytes)  Minara-Construction-3.JPG (240490 bytes)  Minara-Construction-4.JPG (148767 bytes)  Minara-Construction-5.JPG (117527 bytes)

Superheater 1B

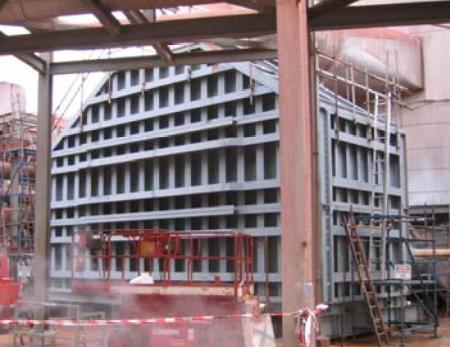

Minara-Resources-21.jpg (31765 bytes) - Superheater 1B is enclosed to capture leaking gases

2007 Shutdown

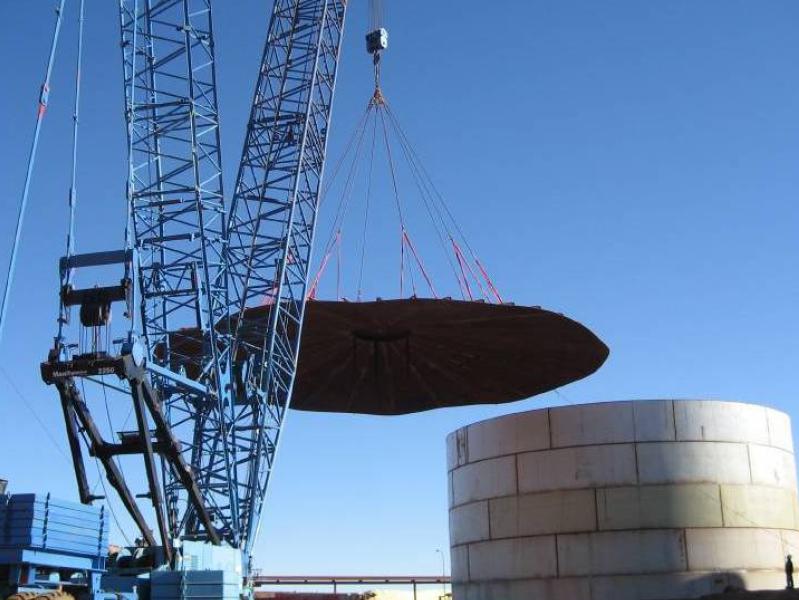

Acid Storage Minara-Resources-4.JPG (63415 bytes)

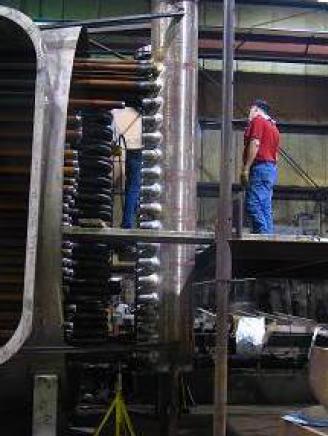

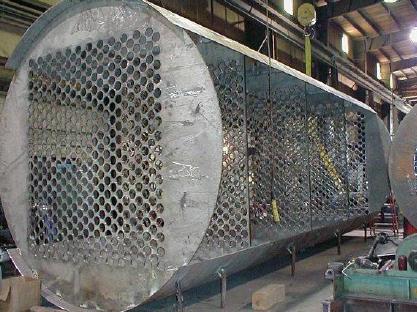

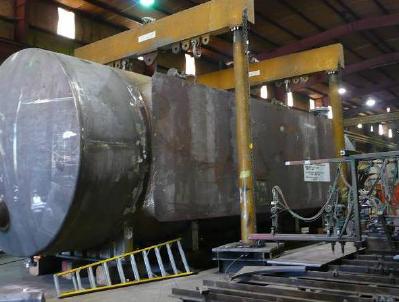

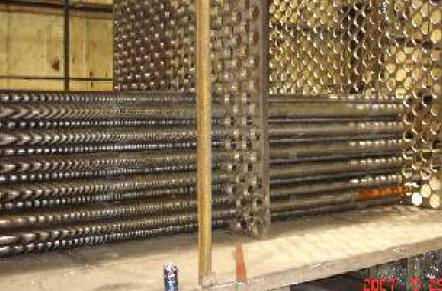

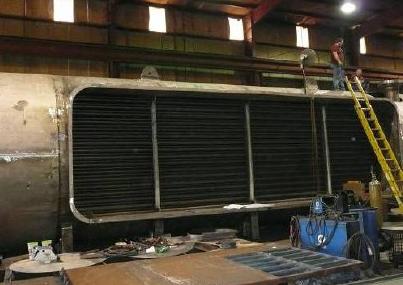

Superheater 1B Minara-Resources-5.JPG (39146 bytes)  Minara-Resources-6.JPG (34413 bytes)  Minara-Resources-7.JPG (28078 bytes)  Minara-Resources-8.JPG (22986 bytes)  Minara-Resources-9.JPG (24209 bytes)

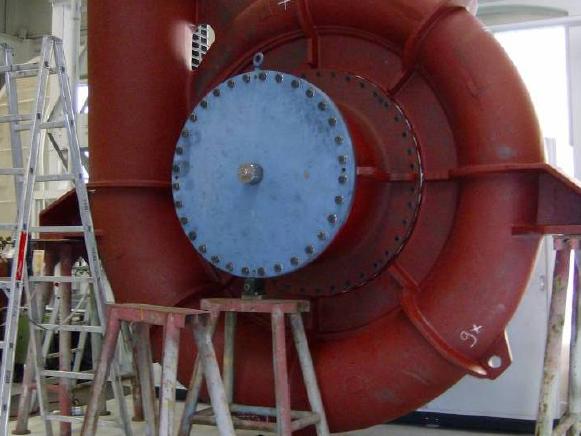

Blower Minara-Resources-10.JPG (36153 bytes)

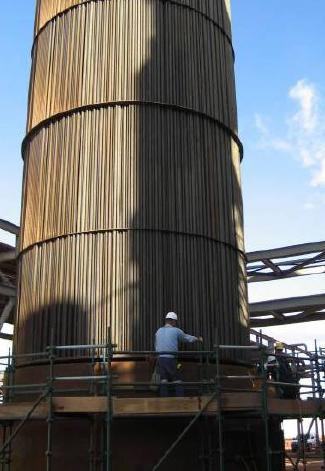

Cold Interpass Heat Exchanger Minara-Resources-11.JPG (29035 bytes)  Minara-Resources-12.JPG (18308 bytes)

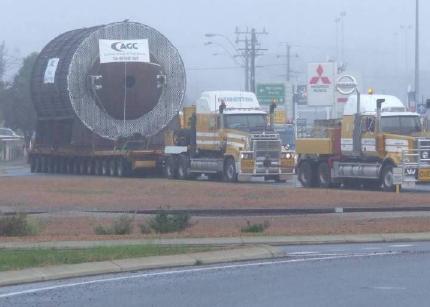

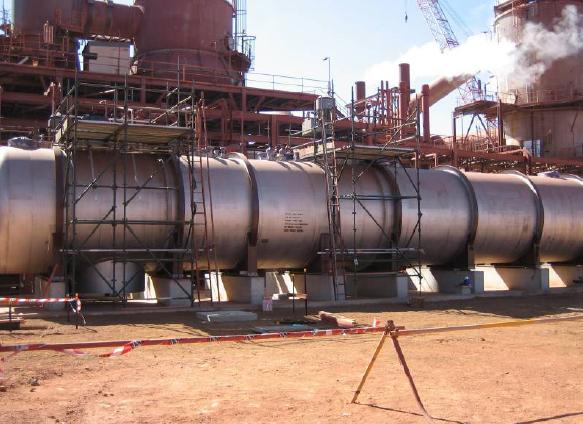

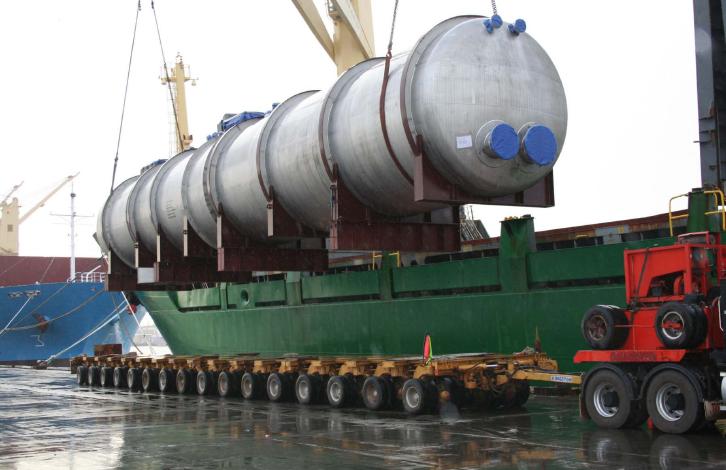

Common Absorber Pump Tank Minara-Resources-13.JPG (48723 bytes)  Minara-Resources-14.JPG (50507 bytes)

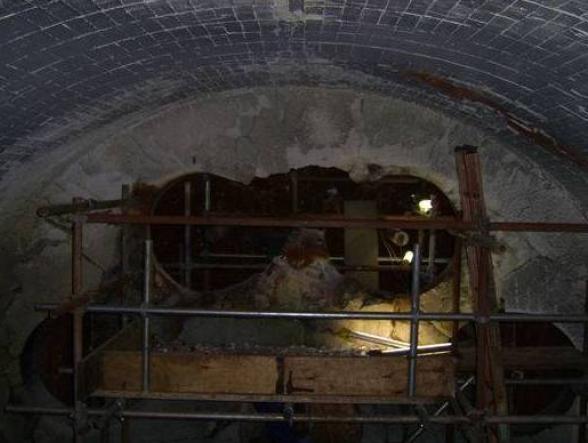

Sulphur Furnace Minara-Resources-15.JPG (34240 bytes)

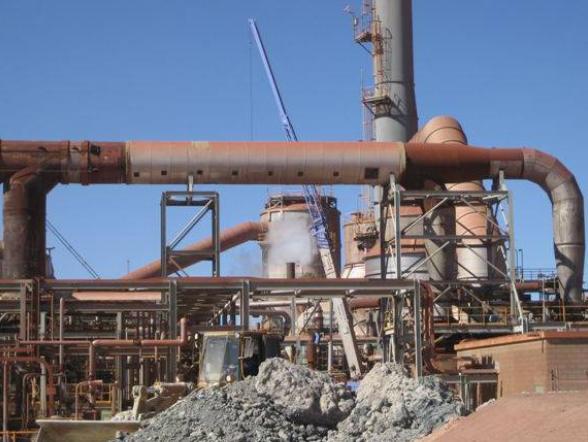

Blower Ducting Minara-Resources-16.JPG (44249 bytes)

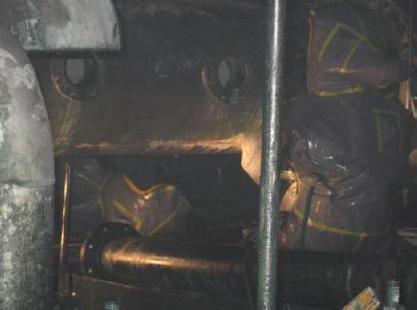

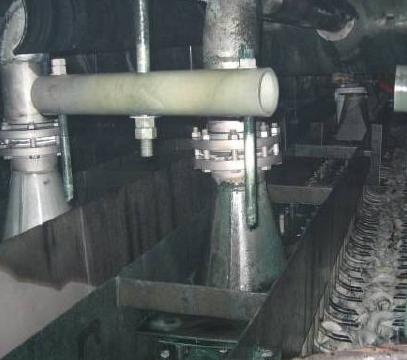

HRS Tower Distributor Minara-Resources-17.JPG (21286 bytes)  Minara-Resources-18.JPG (14998 bytes)

General -
References -
News -

MTPD - Metric Tonne per Day           STPD - Short Ton per Day
MTPA - Metric Tonne per Annum      STPA - Short Ton per Annum
SA - Single Absorption
DA - Double Absorption


* Coordinates can be used to locate plant on Google Earth
