Acid Plant Database October 10, 2019

Owner

Lenzing Aktiengesellschaft


Location 4860 Lenzing
Austria
Background -
Website www.lenzing.com
Plant Plant 1 Plant 2
Coordinates* 47° 58' 32" N, 13° 37' 7" E 47° 58' 30" N, 13° 37' 7" E
Type of Plant Sulphur Burning Wet-Gas Sulphuric Acid (WSA)
Sulphur Burning
Gas Source Elemental Sulphur

Elemental Sulphur
SO2 gases from viscose production

Plant Capacity

270 MTPD
89,910 MTPA

140 MTPD
46,620 MTPA
SA/DA DA
Inlet SO2: 11 to 11.5%
Conversion: 99.8%
Inlet SO2: 8%
Conversion: 99.8%
Emissions SO2: 810 mg/Nm3 (~1.4 kg/t) SO2: 500 mg/Nm3 (~1.18 kg/t)
Status - -
Year Built 1965 2004
Technology Chemiebau-Zieren Haldor Topsøe
Contractor Davy McKee -
Remarks - -

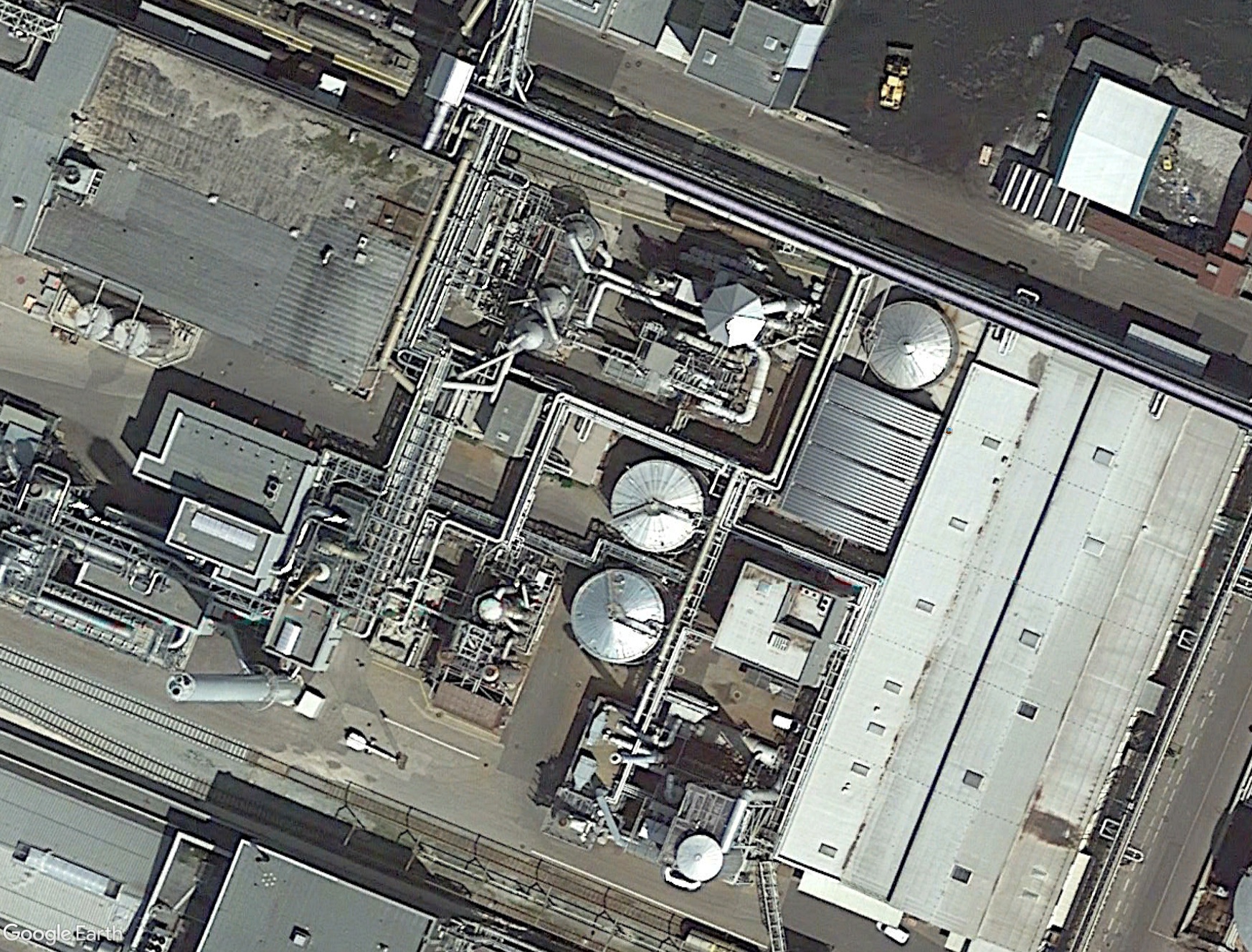

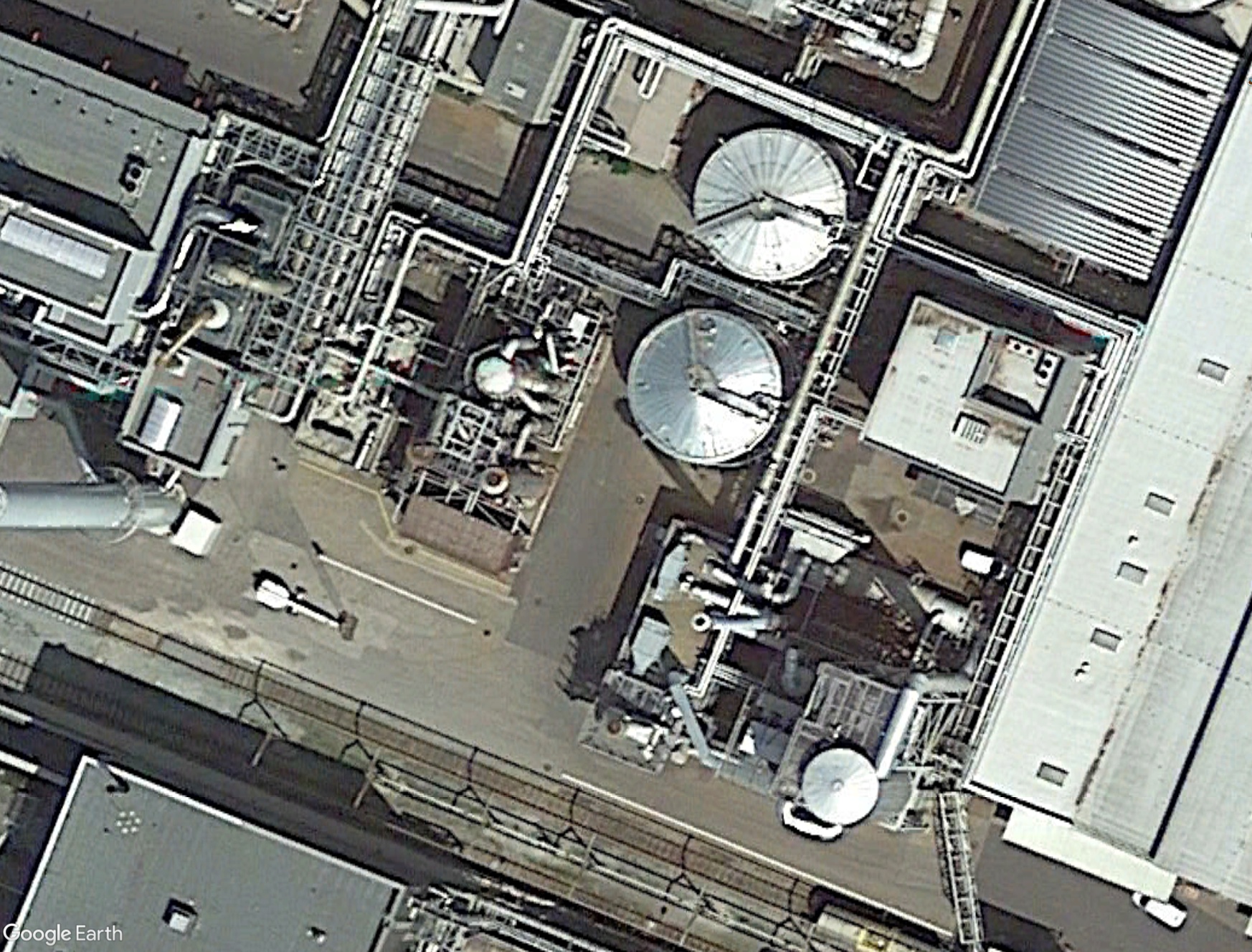

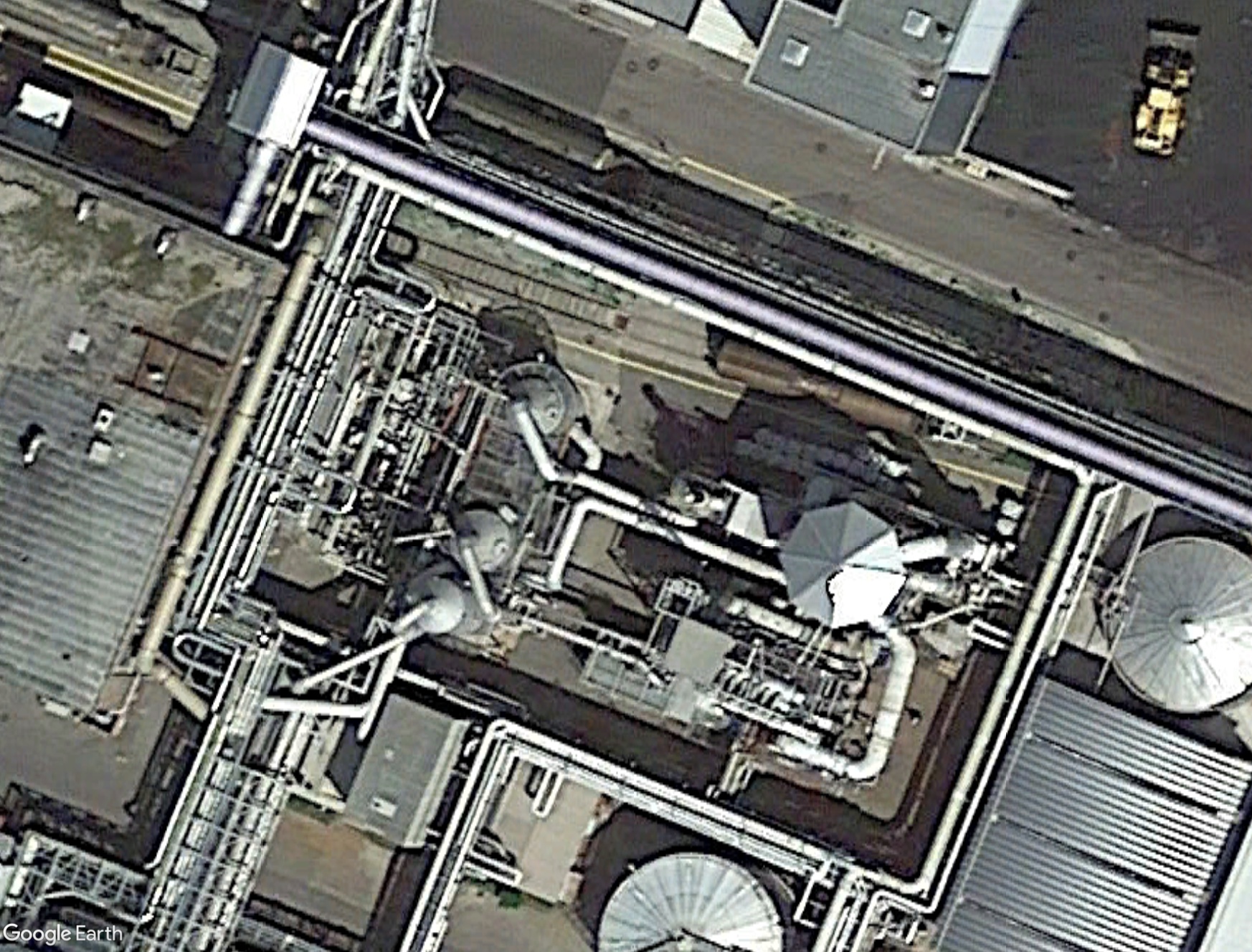

Pictures
General -
References -
News
October 9, 2019 - By 2030, the Lenzing Group aims to reduce its specific CO2 emissions per ton of manufactured pulp and fibers by 50%. By the year 2050, the Lenzing Group will no longer generate any net CO2 emissions.  Lenzing’s Management Board has now resolved to invest Euro 40 million to expand the production of the raw material sulfuric acid at the Lenzing site. The application of state-of-the-art technologies will further improve exhaust emission values, as the company says in the press release received by Lesprom Network.  Furthermore, the new facility will help further reduce the use of fossil fuels by generating steam which will, in turn, be converted into electricity. In this way, it will also support the energy self-sufficiency of the company’s operations in Lenzing. As a result, the production plant in Lenzing will reduce its annual CO2 emissions by 15,000 tons.  “On the basis of these investments, Lenzing is taking the next step in achieving its climate targets. At the same time, it will also reach a significantly higher level of autonomy with respect to a vital raw material,” states Stefan Doboczky, CEO of Lenzing.  The Lenzing Group is an international company that produces high- quality fibers and filaments from the renewable raw material wood with environmentally friendly and innovative technologies.

MTPD - Metric Tonne per Day           STPD - Short Ton per Day
MTPA - Metric Tonne per Annum      STPA - Short Ton per Annum
SA - Single Absorption
DA - Double Absorption

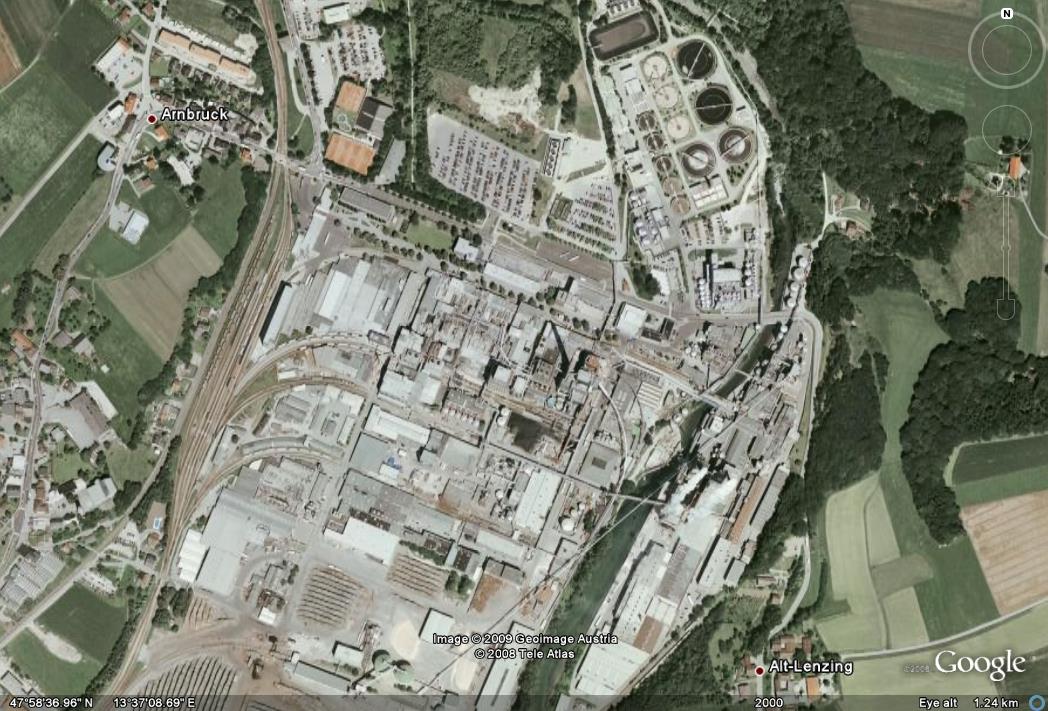

* Coordinates can be used to locate plant on Google Earth
