Acid Plant Database  May 8, 2020

Owner Sable Zinc Kabwe Limited
Location

Plot 5066,
Old ZCCM Site
Kabwe
Zambia

Sable is located approximately 2 km south of the Kabwe town centre in the central province of the Republic of Zambia, some 150 km north of Lusaka.   The processing facility is situated close to the main road as well as the main railway line between the copperbelt and Lusaka and is accessed via a tarred road.

Background 2005 - Metorex acquires Sable Zinc Plant
2011 - Sable Zinc sold to Glencore International plc
2019 - Jubilee Metals Group acquires Sable Zinc
Website www.jubileemetalsgroup.com
Plant -
Coordinates* 14° 27' 33" S, 28° 26' 16" E
Type of Plant Sulphur Burning
Gas Source Elemental Sulphur
Plant Capacity Sulphuric Acid: 100 MTPD
Liquid SO2: 6 MTPD
SA/DA -
Emissions -
Status Operating
Year Built 2007
Technology Outotec
Contractor Furnace Fabrica
Remarks -

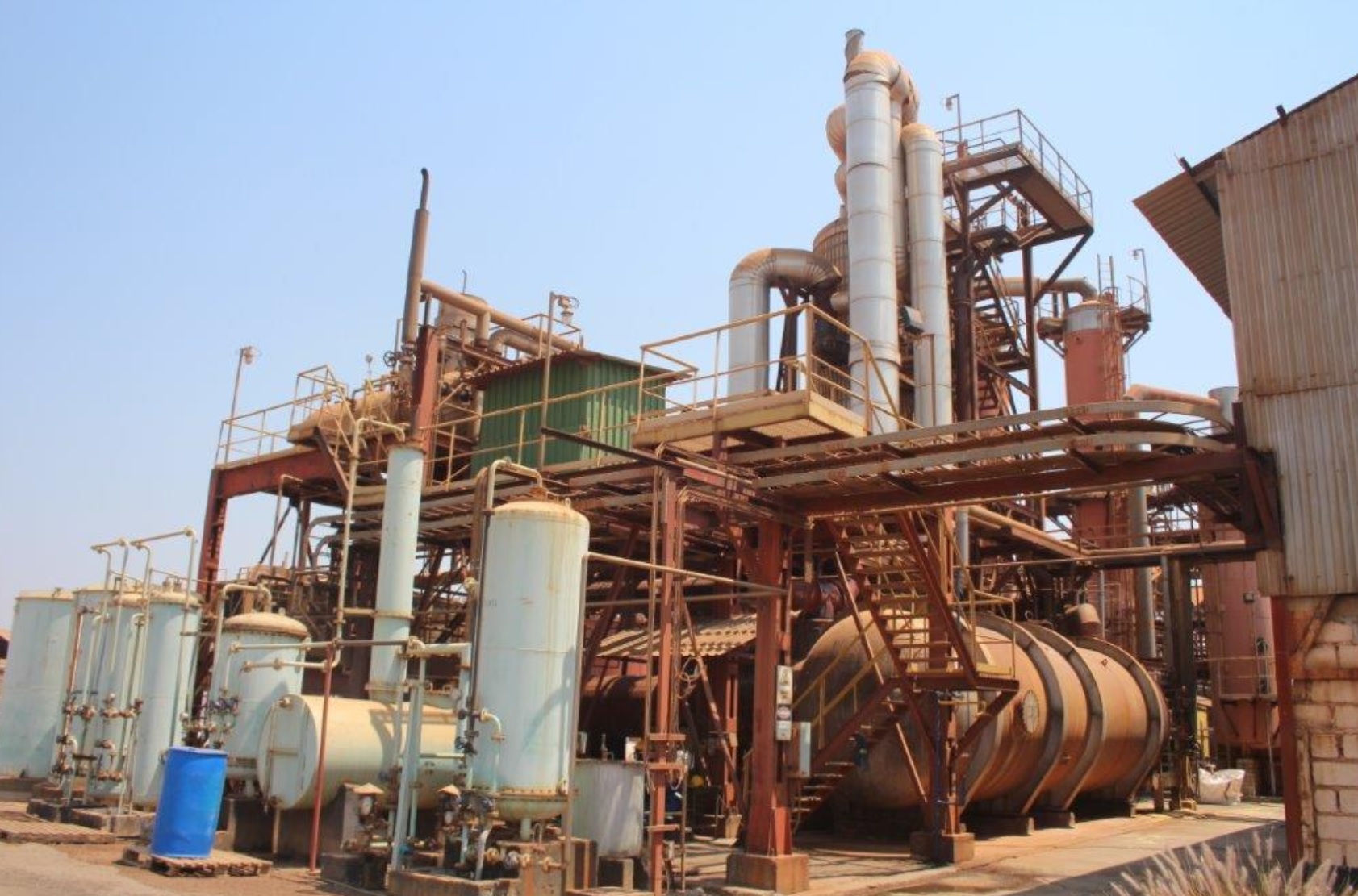

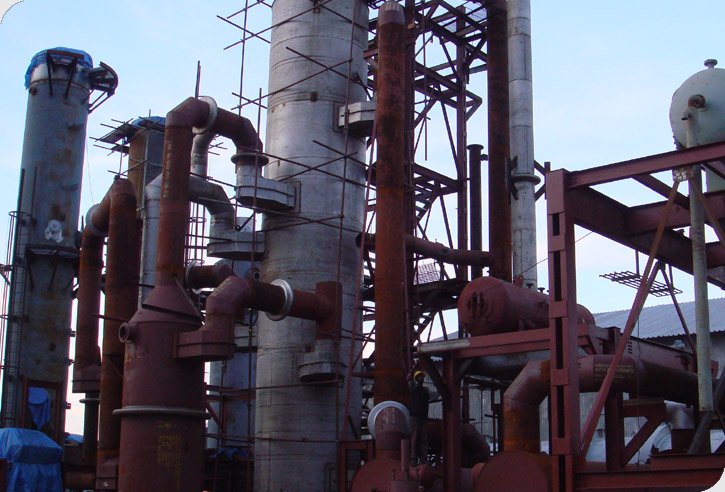

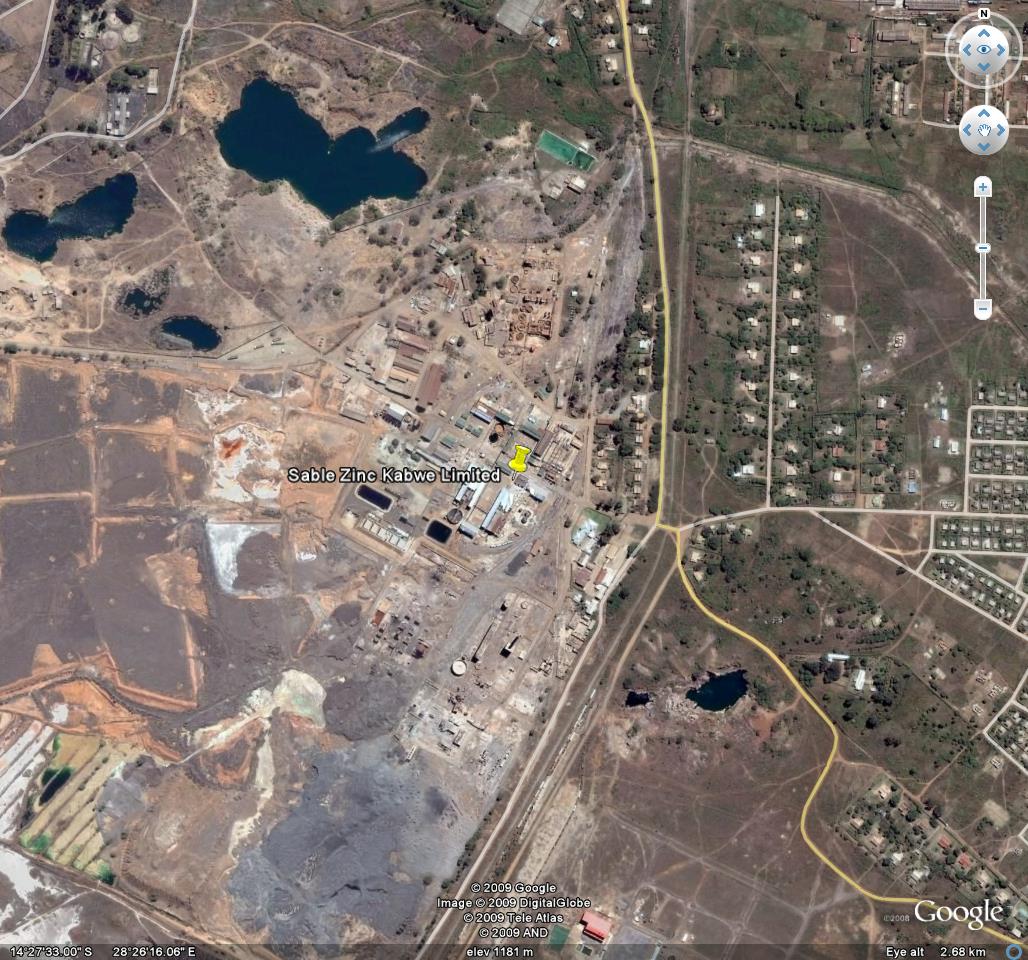

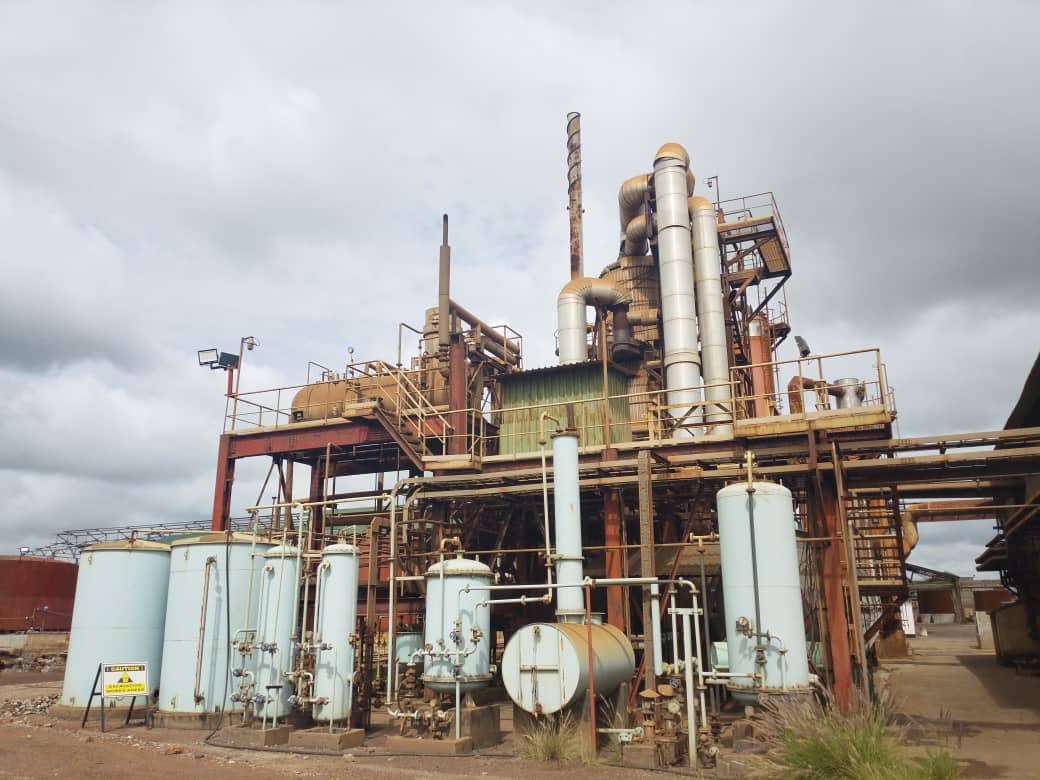

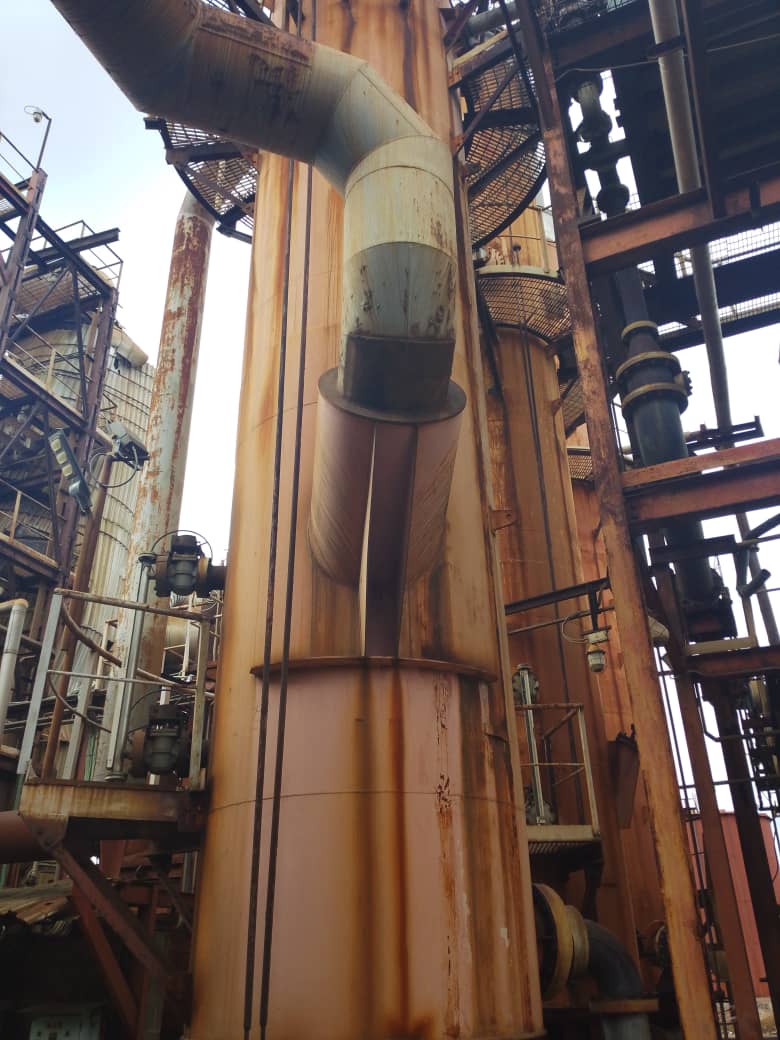

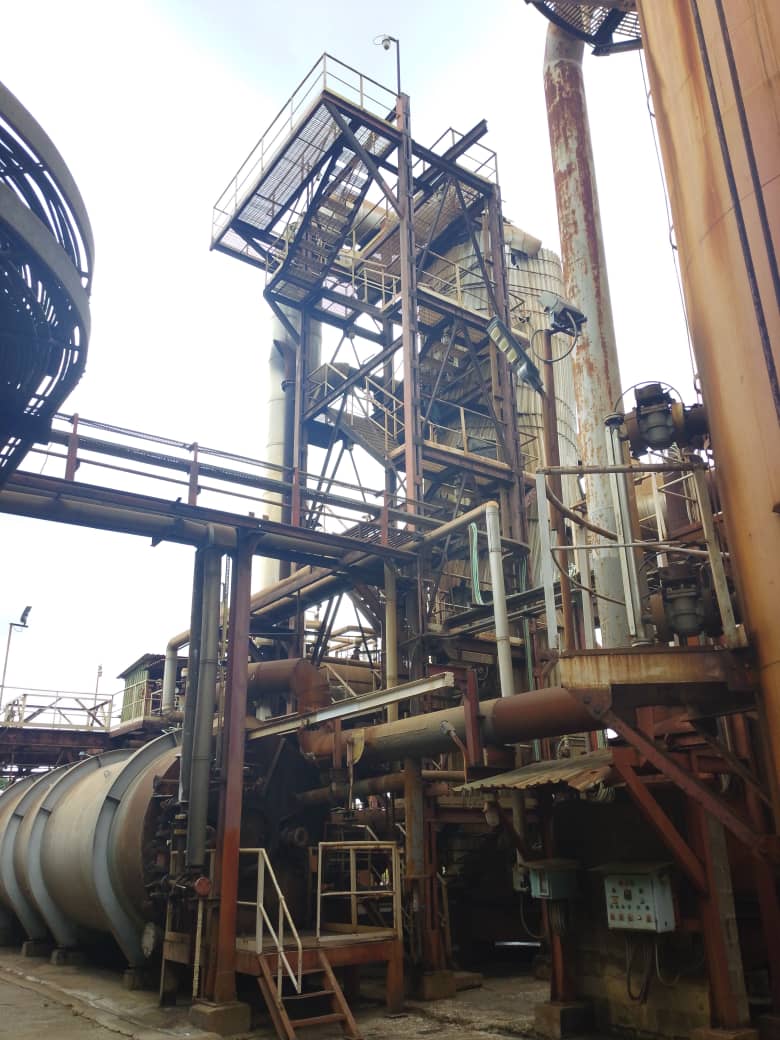

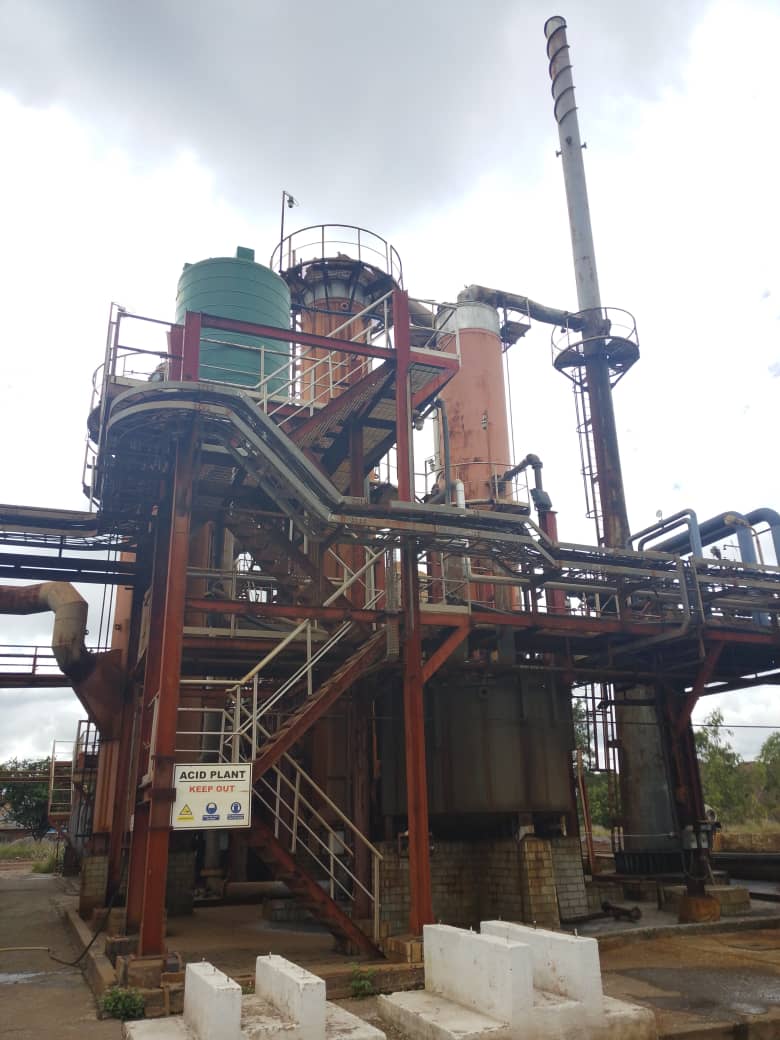

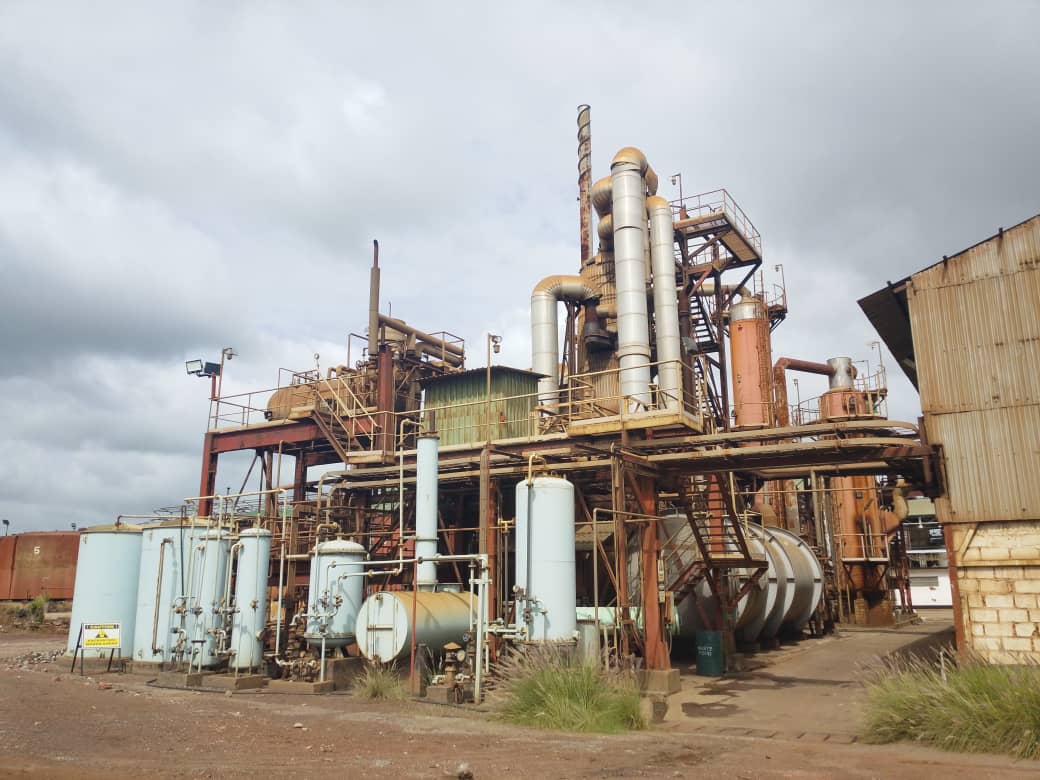

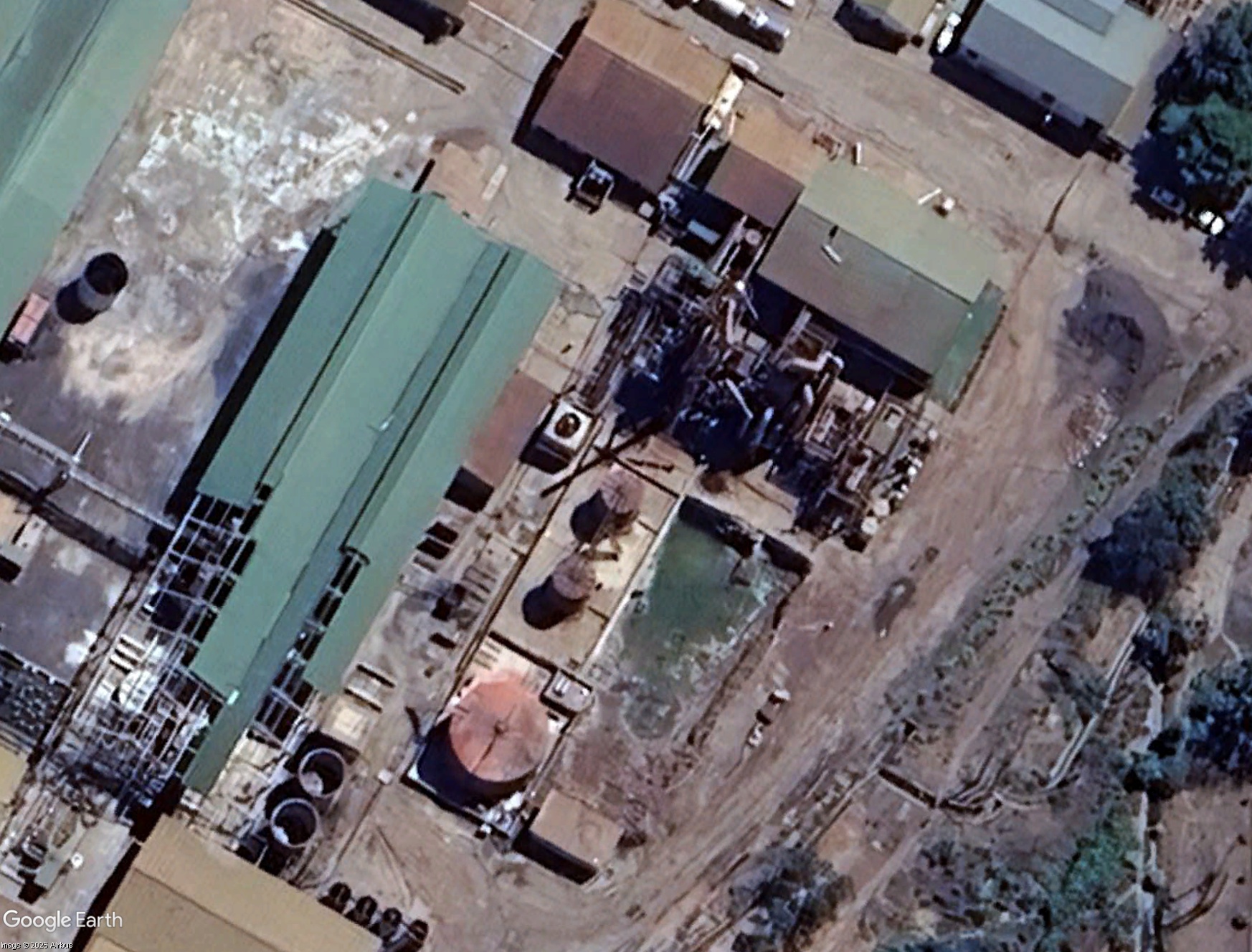

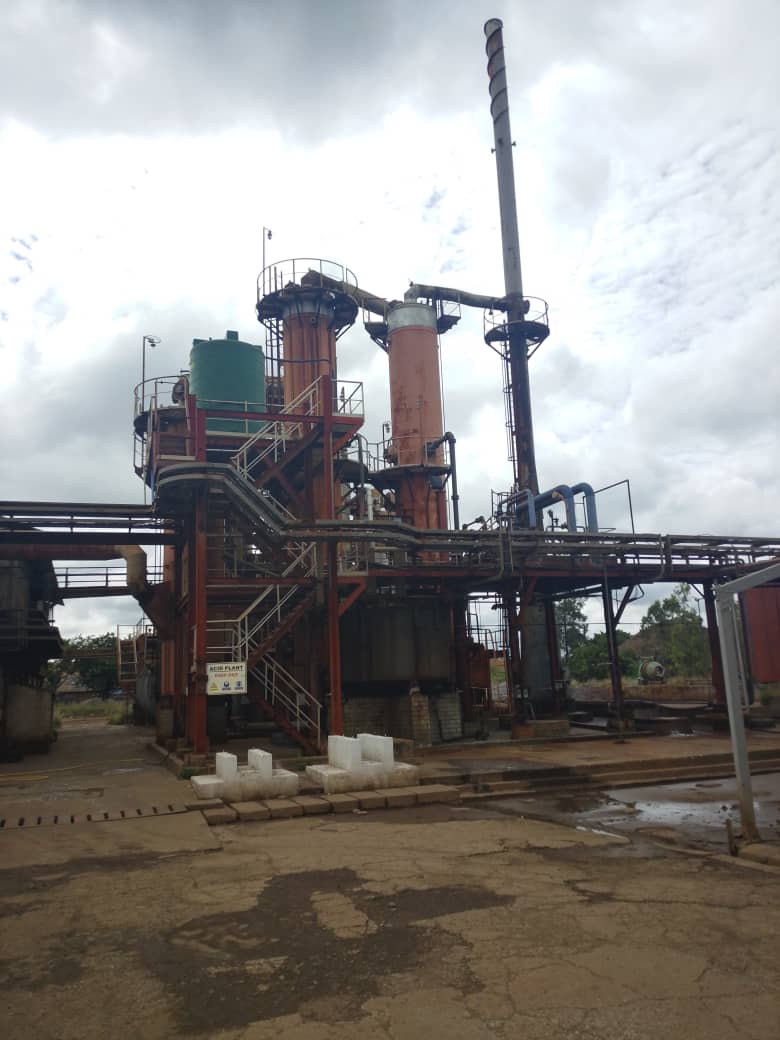

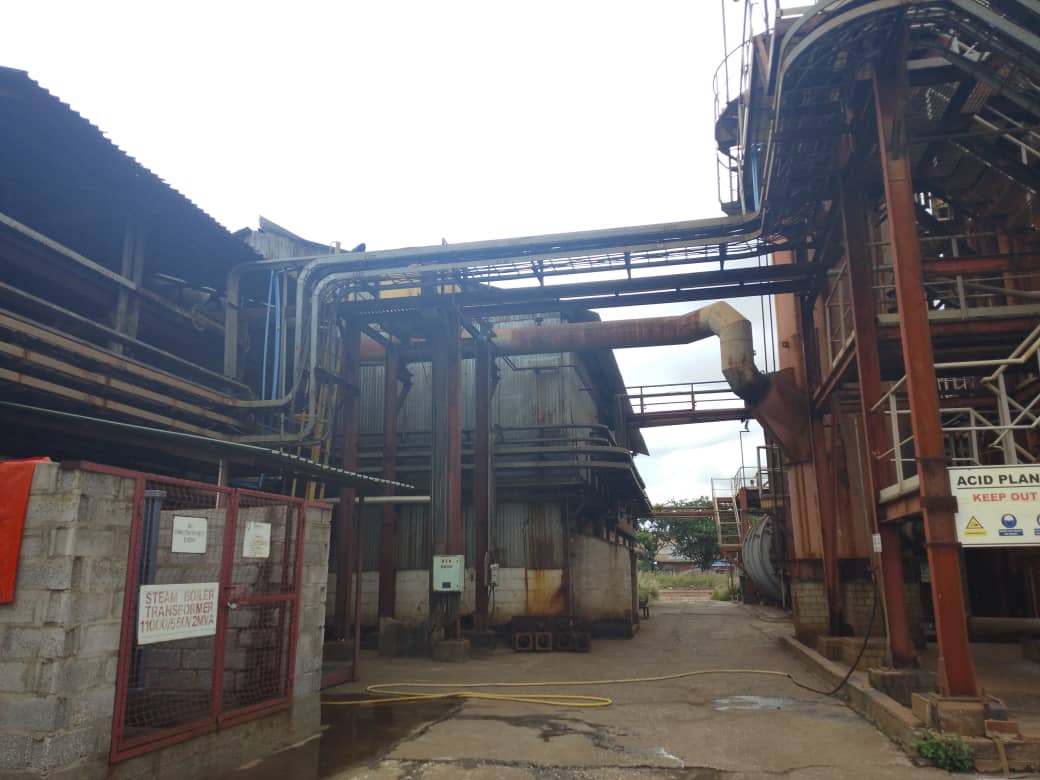

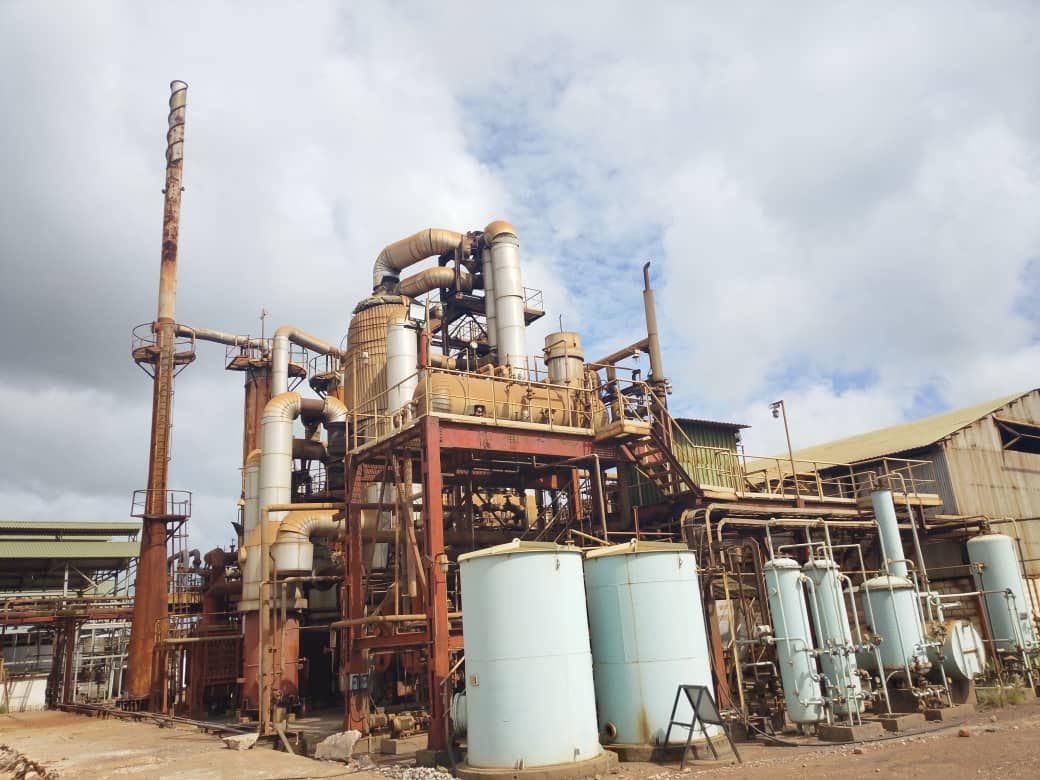

Pictures Sable Zinc Kabwe 1.jpg (206872 bytes)  Sable Zinc Kabwe 3.jpg (126991 bytes)
General Sable Zinc Kabwe is a copper and cobalt processing facility established to treat the concentrate from Ruashi, and other ore suppliers.  The sulphuric acid plant supplies Sable needs, and the excess production is sold to the other Zambian Copperbelt and the DRC oxide copper producers.  With the introduction of the Ruashi Phase II plant, Sable will be required to source ore and/or concentrate from third party suppliers.
The zinc processing plant was commissioned, within the budget of US$5 million, midway through the financial year, but due to the lower zinc price, the facility was converted to a cobalt leaching facility to add better value to Sable. This has further improved the recoveries of cobalt. The zinc tailings dumps remain to be processed at a later stage.
References -
News August 23, 2019 - Jubilee Metals Group has announced that the sale and transfer of the entire issued share capital in Sable Zinc Kabwe to Jubilee has been completed.  This allows Jubilee to commence with the implementation of a fully integrated multi-metal refinery in Zambia.  Jubilee CEO, Leon Coetzer, says: “Completing the acquisition of the Refinery is a key milestone in delivering Jubilee’s Zambian strategy of establishing a fully integrated multi-metal recovery operation.  “The Refinery, which will be the only one of its kind in Zambia, opens tremendous potential opportunities for Jubilee to significantly increase its access to additional surface materials for further refining.  “The advancement of the Kabwe Project is in line with our group strategy to diversify earnings across multiple commodities and jurisdictions. We are able to fund the acquisition and implementation of the Kabwe project from our current cash reserves.”
·
The acquisition of Sable Zinc Refinery has been completed representing a major step for the advancement of the Kabwe Project
·        The acquisition significantly reduces the Kabwe Project implementation time lines and project capital requirement
·
The Refinery together with Jubilee’s Kabwe surface resources in excess of 6 million tonnes at surface, establishes a fully integrated multi-metal operational footprint in Zambia
·        Jubilee intends to recommission the current copper/cobalt circuit during Q4 2019 to achieve earnings during the build phase of the zinc vanadium and lead circuit with first production of zinc and vanadium targeted for Q2 2020
·        The acquisition expands Jubilee’s commodity basket to include copper, vanadium, zinc and lead
·
This multi metal refining operation affords Jubilee the opportunity to rapidly expand its metals recovery footprint in Zambia which the Company is actively pursuing

March 22, 2019 - Jubilee Metals Group (AIM:JLP) has acquired the Sable Zinc refinery in Kabwe, Zambia from two subsidiaries of Glencore for £9.16 million (US$12 million) to be paid in stages.  The refinery is located adjacent to Jubilee's large stockpiles of zinc, lead and vanadium contracted from BMR Group.  Jubilee said the refinery would save it from having to build another, reducing the waiting period before first metal was delivered by around 18 months to within a year of the acquisition.  It would also reduce the project capital to produce first metal by around £18.32 million.  Jubilee said it had already secured Zambian ministerial approval for the deal.  The company will finance the deal through a combination of debt and equity, having secured £11.07 million in equity and a convertible loan note of £6.11 million.  The funding will also go towards delivering its nearby Kabwe project.  Jubilee will pay US$6 million within five business days after the closing date of the deal, then make two $3 million instalments, the first either 30 days after the refinery is converted to a zinc processing plant or within six months from the closing date, whichever comes first.  The third and final payment will take place either 30 days after commercial production begins, or six months after the second payment.  The refinery will ramp up over two years from an initial processing rate of 20 tonnes per hour producing zinc concentrate and vanadium pentoxide to 40tph of zinc metal, vanadium pentoxide and lead concentrate.  As Sable Zinc ramps up to full capacity, Jubilee aims to produce over 8,000t per annum of zinc, 1,500tpa of vanadium and 15,000tpa of lead as it ramps up to full capacity.

September 11, 2011
- The Competition and Consumer Protection Commission (CCPC) has granted conditional final authorisation to Glencore Investment for the acquisition of Sable Zinc Kabwe limited.  The CCPC board which sat on Monday this week held that the sale of Sable Zinc Kabwe currently owned by Metorex was not likely to lead to substantial lessening of competition in the local mining sector.

July 8, 2011 - Metorex, a South African-listed base metals miner with interests in the Central African Copper Belt received a $1.3 billion all cash offer from Jinchuan, China’s largest producer of nickel, cobalt and platinum group metals, as well as the one of the top three producers of refined copper. The bid tops a previous offer from Vale by 22%. The offer excluded Metorex’s shareholding in Sable Zinc Kabwe, which was to be sold to Glencore for R190 million. Metorex gave Vale eight days to match the offer. Metorex shareholders are expected vote July 22, 2011.

June 8, 2011 - Metorex has sold its Sable Zinc processing plant in Zambia for a “base price” of R190m, dealing with one of the issues that has delayed the proposed acquisition of the group by Brazilian resource giant ValeThe disposal of Sable was one of the conditions precedent to the deal struck between Metorex and Vale on April 8, through which Vale made a cash offer of 735c per share for Metorex.  The offer is subject to approval by Metorex shareholders at an extraordinary general meeting, which will now be called for in terms of a circular to shareholders to be issued early next week.  One of the other conditions precedent was that all conditions had to be met or waived within 180 days from April 8.  Metorex chairperson Rob Still said: "The timetable has been delayed slightly so far by requirement to sell Sable at a price that added value for Metorex shareholders, as well as issues in complying with the new Companies Act.  “We are the first company to carry out a deal like this in terms of the new act and all the relevant players have had to familiarise themselves with the process.”

The terms of the sale of Sable to Glencore International are that the base price of R190m could be reduced by up to a maximum of R70m, should any potential liabilities affecting the operation be discovered.

July 28, 2006 - Zinc tailings at Metorex’s Zambian processing plant present a potentially rewarding and unforeseen opportunity for the JSE-listed mining group.  Metorex bought the Sable zinc processing plant in Kabwe, Zambia with the intention of converting it into a copper and cobalt plant to process ore from its Ruashi project in the Democratic Republic of Congo (DRC). This process is now complete.  Now high zinc prices have prompted the group to investigate the feasibility of processing zinc tailings left over by the previous owners. The zinc price has almost tripled in the past year, rising from just over $1,000 a tonne, to its current $3,230. This is not surprising since China, the world’s biggest consumer of zinc is experiencing economic growth of over 10%, according to official statistics.  As it is, Metorex bought the processing plant at what CEO Charles Needham describes as an incredibly cheap price. “There are a lot of tailings from the previous zinc processing facility. It is sitting on surface, the grades are attractive,” he told Mineweb in an interview Thursday.  Metorex is currently investigating the feasibility of the project. If viable, Needham reckons he could have a small float or leach circuit to extract zinc up and running within a year. “It’s there for the taking and we’d be crazy not to do it,” he said. The project’s payback time could be less than two years, he estimates.  Metorex is no stranger to zinc. It developed and mined the Maranda Zinc Mine at Tzaneen from brownfields to closure from 1990 to 2004 it had a project called Perkoa in Burkina Faso, which it sold in 2004, citing it as a non-core asset due to its location, logistical complexity and its marginality at the then ruling zinc price.  Meanwhile Metorex, which has exciting copper projects in Zambia and the DRC, is exploring further in the regions. The company will begin exploration work on its Chifupu project, which is south of its 15,000 tonne per annum Chibuluma deposit in Zambia.  Metorex, through its investment in Ruashi Mining Sprl. is also mobilizing drills on its Musonoi copper and cobalt project in the DRC and Needham says he hopes to get a good feel on that resource within six months. After that the group will begin exploration on its Sokoroshi I and II copper and cobalt projects, also in the DRC.  If exploration is successful, Metorex could have a very large exposure to the DRC, something Needham says he’s happy with. The country has skills, people, power and water, he says. But it’s incredibly poor and still plagued with political skirmishes. The DRC will hold elections this Sunday, with current president Joseph Kabila tipped as the favourite of 32 candidates.  On Friday morning Metorex released a trading update saying it expects to post headline earnings for the year ended June 30 2006 of between R0.43 and R0.51. At midday the share price remained unchanged on modest trade at R10.70.  Needham says the Ruashi I project should be at full capacity (10,000tpa of copper and 1,000tpa of cobalt) within three months. “Ruashi Phase II bankable feasibility study and funding arrangements are nearing completion, and the project development is being fast-tracked,” says Metorex in a statement to the JSE.

MTPD - Metric Tonne per Day           STPD - Short Ton per Day
MTPA - Metric Tonne per Annum      STPA - Short Ton per Annum
SA - Single Absorption
DA - Double Absorption


* Coordinates can be used to locate plant on Google Earth
