Acid Plant Database September 10, 2011

Owner Nyrstar NV

Nyrstar Logo.gif (3855 bytes)

Location Zinkstraat 1
B-2490 – Balen
Background Formerly
- Ste Vieille Montagne
- Umicore formed as a result of the merger between Metallurgie Hoboken-Overpelt, SGM and Vieille Montagne
2007 -
Nystar today announced that as of 31 August 2007 it had taken ownership of the zinc and lead smelting and alloying assests of Umicore and Zinifex, thereby formally launching the company and creating the world’s largest zinc producer.
Website www.nyrstar.com
Plant Plant No. 1 No. 4 Roaster
Plant No. 2
Coordinates* 51º 12' 3" N, 5º 13' 3" E 51º 12' 3" N, 5º 13' 58" E
Type of Plant Metallurgical Metallurgical
Gas Source Zinc
Lurgi Roaster
Lurgi Roaster
Plant Capacity 770 MTPD -
Emissions - SO2: < 600 ppm with ZnO scrubber
Status Operating -
Year Built - -
Technology Chemetics -
Contractor Chemetics -
Remarks -

2002 - ZnO tailgas scrubber using Dynawave technology.  Byproduct ZnSO4 sent to leaching plant.  Cost 1.8 million

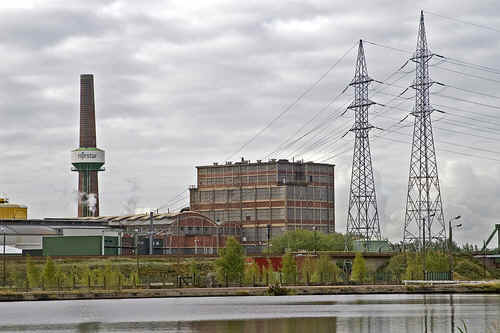

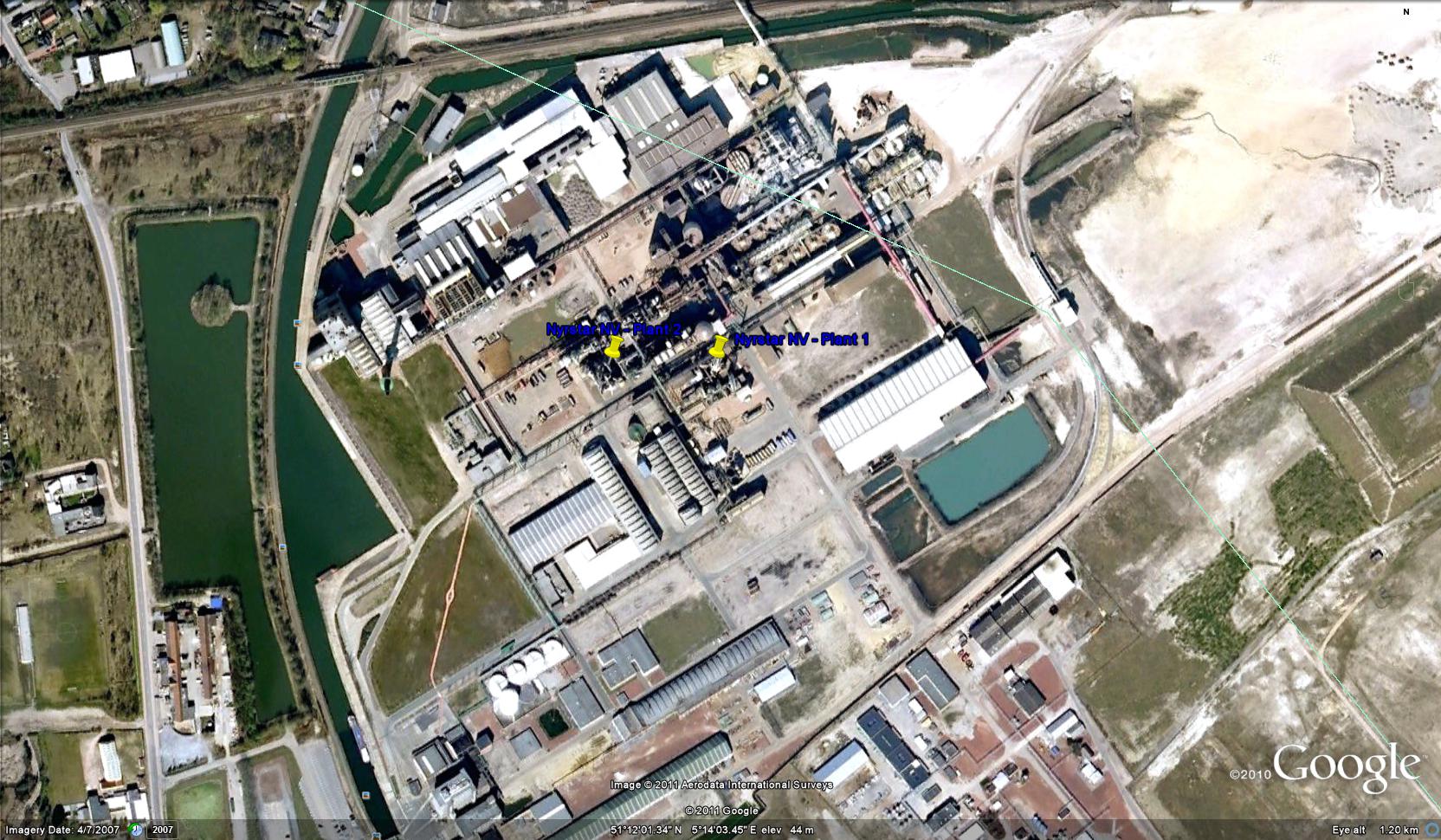

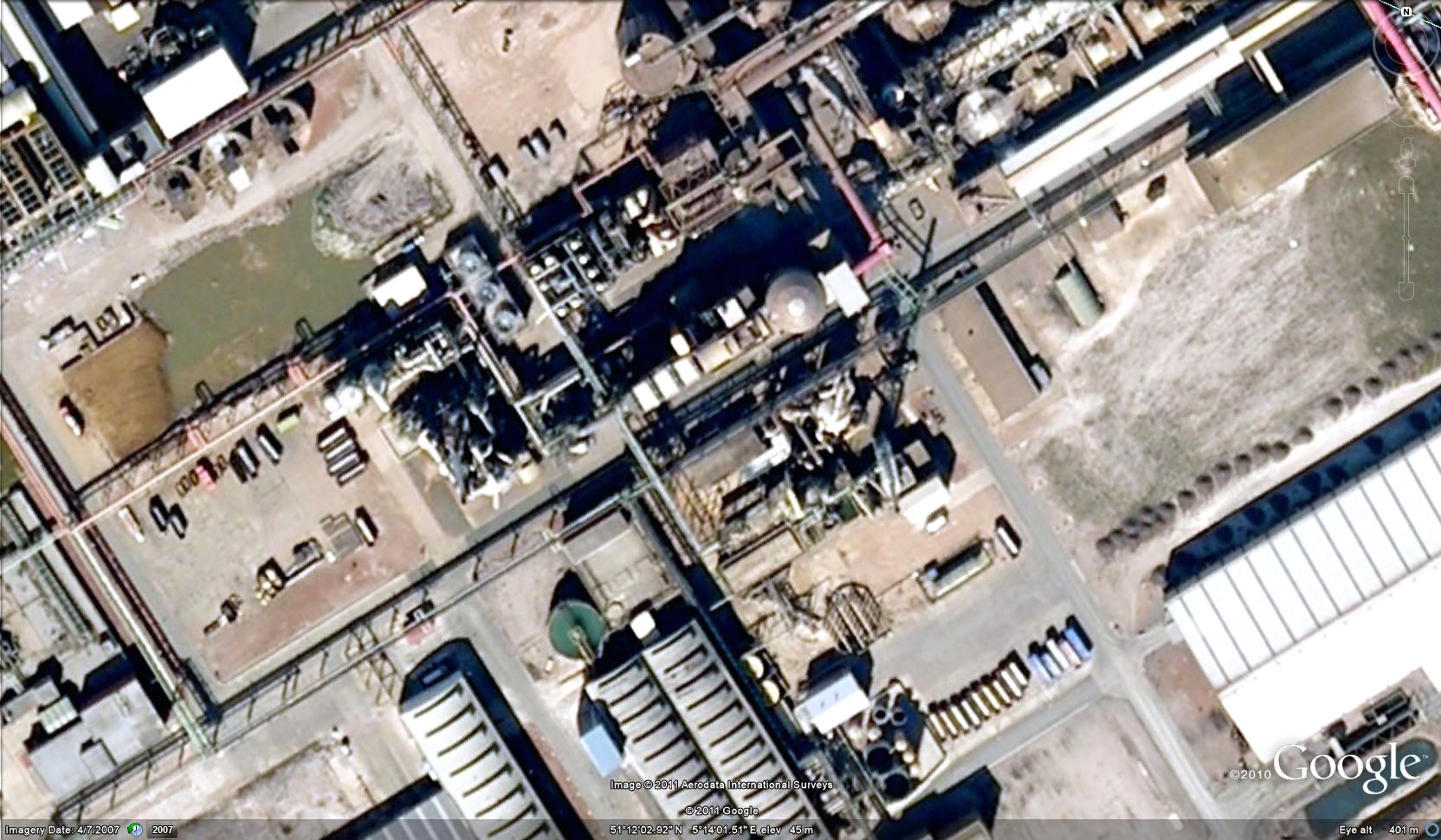

Pictures   Nyrstar - Balen 2.jpg (130942 bytes)  Nystar-Balen-3.jpg (345302 bytes)  Nystar-Balen-4.jpg (258799 bytes)
General The Balen smelter is located on a 244 hectare site in the northeast of Belgium near the city of Mol, approximately 80 kilometres east of Antwerp.
Since 1910 the plant has gradually moved to integrated zinc-lead smelting. The main production process has changed over time from electrolyte zinc production (1930s), to fluidised bed roasting (1950s and 1960s) and to the treatment of residues by an iron removal process (goethite) around 1973. In 1985, Balen began using what was then the largest roasting facility in the world.
The Western regional office is based at the Balen plant and covers Europe, the Middle East, Africa and the Americas.
The Balen office is also the Nyrstar's registered address.
References Geenan, C., Aït Maamar, R. and Eusèbe, C., “Main Developments in Umicore Zinc Smelting”, Lead & Zinc ’05, Proceedings of the International Symposium on Lead and Zinc Processing, Kyoto, Japan, October 17-19, 2005, Volume – I, pp. 247-263.
News 2008-11-26 - Nyrstar NV today informed its Belgian works councils that it will temporarily suspend production and initiate a care and maintenance program at its Balen smelter due to adverse economic circumstances.  The program, which will take place before year end, is necessary to address the significant and sudden decline in customer demand and reduce the accumulation of surplus zinc stocks in the market.  The suspension will also minimise losses at the plant which have been caused by the prevailing low zinc price, falling 58% from its 2008 peak, combined with Balen's high energy and production costs.  Balen currently has the highest labour cost across the Nyrstar Group and its energy cost has increased by more than 50% in the last 12 months.
The suspension is anticipated to continue until mid 2009, but will be reviewed over the coming months.   This equates to a reduction of approximately 25,000 tonnes of zinc in 2008 and a further 130,000 tonnes in the first half of 2009.
Nyrstar has previously announced that it is reducing production at its Budel plant by 28% for the remainder of 2008, and this reduced level of production will now be maintained through mid 2009.   For Budel, this equates to a reduction of approximately 10,000 tonnes of zinc in 2008 and a further 35,000 tonnes in the first half of 2009.
The care and maintenance program at Balen will help to ensure the plant is maintained in a ready condition, enabling it to return to production when economic conditions improve. The adjoining site at Overpelt will continue to operate at a reduced five-day week, producing die-cast alloys and providing washed zinc oxides for the Group.

MTPD - Metric Tonne per Day           STPD - Short Ton per Day
MTPA - Metric Tonne per Annum      STPA - Short Ton per Annum
SA - Single Absorption
DA - Double Absorption

* Coordinates can be used to locate plant on Google Earth
